CS302 CS303 CS304 CS305 CS306 CS307 CS308 CS309 CS310 CS311 CS312-Shanghai Anshu Mechanical&Electrical Equipment Co., Ltd.

Bearing

CS302 CS303 CS304 CS305 CS306 CS307 CS308 CS309 CS310 CS311 CS312

Spherical Bearings

PRODUCT DETAILS

CS302 CS303 CS304 CS305 CS306 CS307 CS308 CS309 CS310 CS311 CS312

Bearing	Size(mm/in.)			W.T(kg)

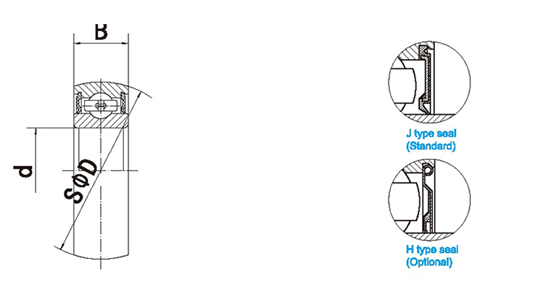

Bearing	d	D	B	W.T(kg)
CS302	15	42	13	0.076
CS303	17	47	14	0.105
CS304	20	52	15	0.137
CS305	25	62	17	0.211
CS306	30	72	19	0.338
CS307	35	80	21	0.439
CS308	40	90	23	0.618
CS309	45	100	25	0.81
CS310	50	110	27	1.048
CS311	55	120	29	1.326
CS312	60	130	31	1.659

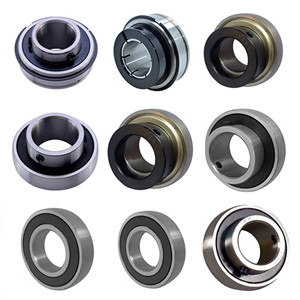

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
