Bearing

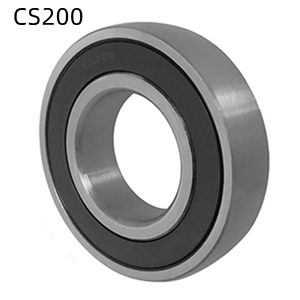

CS200 CS201 CS202 CS203 CS204 CS205 CS206 CS207 CS208 CS209 CS210 CS211 CS212

Spherical Bearings

PRODUCT DETAILS

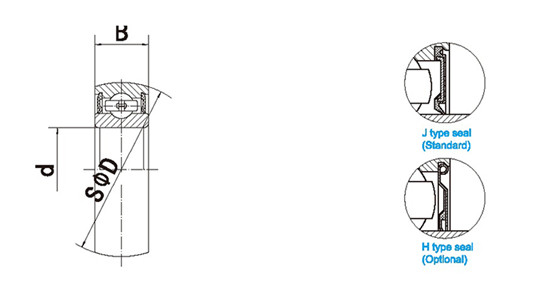

Bearing	Size(mm/in.)			W.T(kg)
Bearing	d	D	B	W.T(kg)
CS200	10	30	9	0.031
CS201	12	32	10	0.033
CS202	15	35	11	0.043
CS203	17	40	12	0.061
CS204	20	47	14	0.098
CS205	25	52	15	0.122
CS206	30	62	16	0.195
CS207	35	72	17	0.28
CS208	40	80	18	0.358
CS209	45	85	19	0.405
CS210	50	90	20	0.449
CS211	55	100	21	0.589
CS212	60	110	22	0.774

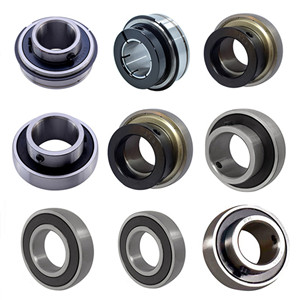

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
