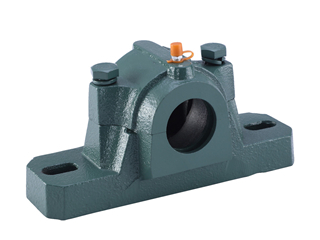

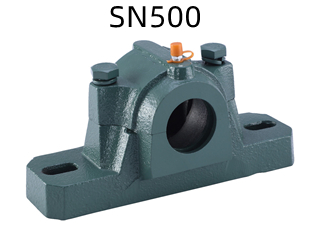

Split housing

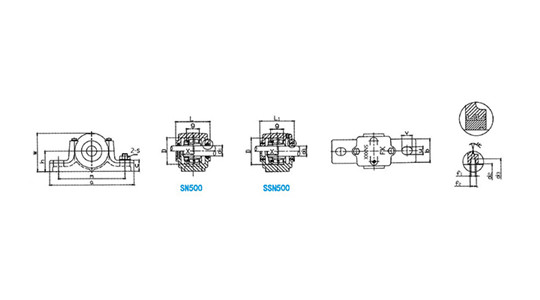

| Bearing housing | Size(mm) | Bearing | Bushing | Locating ring | W.T(kg) | ||||||||||||||
| d1 | D | g | a | b | c | h | L | L1 | W | m | s | Model | QTY | ||||||
| SN505 | 20 | 52 | 25 | 165 | 46 | 22 | 40 | 67 | 70 | 73 | 130 | M12 | 1205K | 22205K | H205 | HE205 | SR52×5 | 2 | 1.4 |
| SN506 | 25 | 62 | 30 | 185 | 52 | 22 | 50 | 77 | 80 | 89 | 150 | M12 | 1206K | 22206K | H206 | HE206 | SR62×7 | 2 | 2.15 |
| SN507 | 30 | 72 | 33 | 185 | 52 | 22 | 50 | 82 | 85 | 94 | 150 | M12 | 1207K | 22207K | H207 | HE207 | SR72×8 | 2 | 2.35 |
| SN508 | 35 | 80 | 33 | 205 | 60 | 25 | 60 | 85 | 90 | 109 | 170 | M12 | 1208K | 22208K | H208 | HE208 | SR80×7.5 | 2 | 3.2 |
| SN509 | 40 | 85 | 31 | 205 | 60 | 25 | 60 | 85 | 90 | 111 | 170 | M12 | 1209K | 22209K | H209 | HE209 | SR85×5.5 | 2 | 3 |
| SN510 | 45 | 90 | 33 | 205 | 60 | 25 | 60 | 90 | 95 | 114 | 170 | M12 | 1210K | 22210K | H210 | HE210 | SR90×6.5 | 2 | 3.75 |
| SN511 | 50 | 100 | 33 | 255 | 70 | 28 | 70 | 95 | 100 | 129 | 210 | M16 | 1211K | 22211K | H211 | HE211 | SR100×6 | 2 | 5.3 |
| SN512 | 55 | 110 | 38 | 255 | 70 | 30 | 70 | 105 | 110 | 134 | 210 | M16 | 1212K | 22212K | H212 | HE212 | SR110×8 | 2 | 6.3 |
| SN513 | 60 | 120 | 43 | 275 | 80 | 30 | 80 | 110 | 115 | 150 | 230 | M16 | 1213K | 22213K | H213 | HE213 | SR120×10 | 2 | 6.8 |
| SN515 | 65 | 130 | 41 | 280 | 80 | 30 | 80 | 115 | 120 | 155 | 230 | M16 | 1215K | 22215K | H215 | HE215 | SR130×8 | 2 | 7.4 |
