SN516 SN517 SN518 SN519 SN520 SN522 SN524 SN526 SN528 SN530 SN532

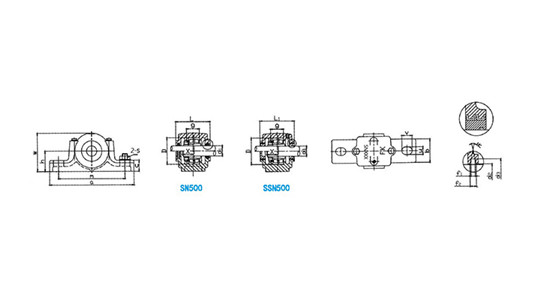

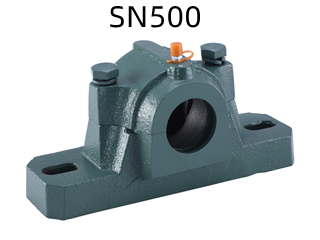

Split housing
| Bearing housing | Size(mm) | Bearing | Bushing | Locating ring | W.T(kg) | ||||||||||||||
| d1 | D | g | a | b | c | h | L | L1 | W | m | s | Model | QTY | ||||||
| SN516 | 70 | 140 | 43 | 315 | 90 | 32 | 95 | 120 | 125 | 175 | 260 | M20 | 1216K | 22216K | H216 | HE216 | SR140×8.5 | 2 | 11.4 |
| SN517 | 75 | 150 | 46 | 320 | 90 | 32 | 95 | 125 | 130 | 183 | 260 | M20 | 1217K | 22217K | H217 | HE217 | SR150×9 | 2 | 11.1 |
| SN518 | 80 | 160 | 62.4 | 345 | 100 | 35 | 100 | 145 | 150 | 193 | 290 | M20 | 1218K | 22218K | H218 | HE218 | SR160×16.2 | 2 | 17 |
| SN519 | 85 | 170 | 53 | 345 | 100 | 35 | 112 | 140 | 145 | 210 | 290 | M20 | 1219K | 22219K | H219 | HE219 | SR170×10.5 | 2 | 15.5 |
| SN520 | 90 | 180 | 70.3 | 380 | 110 | 40 | 112 | 160 | 165 | 217 | 320 | M24 | 2220K | 22220K | H320 | HE320 | SR180×12.1 | 2 | 23 |
| SN522 | 100 | 200 | 80 | 410 | 120 | 45 | 125 | 175 | 180 | 239 | 350 | M24 | 2222K | 22222K | H322 | HE322 | SR200×13.5 | 2 | 29 |
| SN524 | 110 | 215 | 86 | 410 | 120 | 45 | 140 | 185 | 190 | 268 | 350 | M24 | 22224K | H3124 | HE3124 | SR215×14 | 2 | 33.6 | |
| SN526 | 115 | 230 | 90 | 445 | 130 | 50 | 150 | 190 | 195 | 287 | 380 | M24 | 22226K | H3126 | HE3126 | SR230×13 | 2 | 41 | |
| SN528 | 125 | 250 | 98 | 500 | 150 | 50 | 150 | 205 | 210 | 302 | 420 | M30 | 22228K | H3128 | HE3128 | SR250×15 | 2 | 49 | |
| SN530 | 135 | 270 | 106 | 530 | 160 | 60 | 160 | 220 | 225 | 322 | 450 | M30 | 22230K | H3130 | HE3130 | SR270×16.5 | 2 | 60 | |
| SN532 | 140 | 290 | 114 | 550 | 160 | 60 | 170 | 235 | 240 | 344 | 470 | M30 | 22232K | H3132 | HE3132 | SR290×17 | 2 | 68.8 | |
