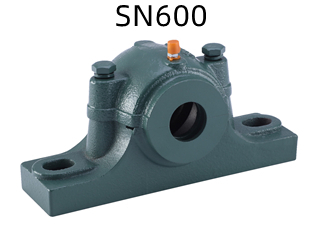

SN616 SN617 SN618 SN619 SN620 SN622 SN624 SN626 SN628 SN630 SN632

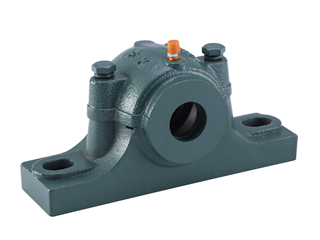

Split housing

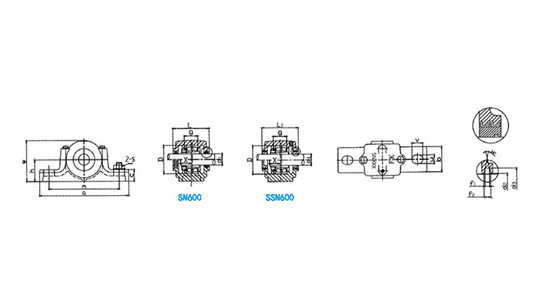

| Bearing housing | Size(mm) | Bearing | Bushing | Locating ring | |||||||||||||
| d1 | D | g | a | b | c | h | L | L1 | W | m | s | ||||||
| SN616 | 70 | 170 | 68 | 345 | 100 | 35 | 112 | 145 | 150 | 212 | 290 | M20 | 1316K | 22316K | H316 | HE316 | SR170×14.5 |
| SN617 | 75 | 180 | 70 | 380 | 110 | 40 | 112 | 155 | 160 | 218 | 320 | M24 | 1317K | 22317K | H317 | HE317 | SR180×14.5 |
| SN618 | 80 | 190 | 74 | 400 | 110 | 33 | 112 | 160 | 165 | 226 | 320 | M24 | 1318K | 22318K | H318 | HE318 | SR190×15.5 |
| SN619 | 85 | 200 | 77 | 420 | 120 | 36 | 125 | 170 | 175 | 245 | 350 | M24 | 1319K | 22319K | H319 | HE319 | SR200×16 |
| SN620 | 90 | 215 | 83 | 420 | 120 | 38 | 140 | 175 | 180 | 275 | 350 | M24 | 1320K | 22320K | H320 | HE320 | SR215×18 |
| SN622 | 100 | 240 | 90 | 460 | 130 | 40 | 150 | 190 | 195 | 300 | 390 | M24 | 1322K | 22322K | H322 | HE322 | SR240×20 |
| SN624 | 110 | 260 | 96 | 540 | 160 | 50 | 160 | 205 | 210 | 320 | 450 | M30 | 1324K | 22324K | H2324 | HE2324 | SR260×10 |
| SN626 | 115 | 280 | 103 | 560 | 160 | 50 | 170 | 215 | 220 | 345 | 470 | M30 | 1326K | 22326K | H2326 | HE2326 | SR280×10 |
| SN628 | 125 | 300 | 112 | 630 | 170 | 55 | 180 | 235 | 240 | 370 | 520 | M30 | 1328K | 22328K | H2328 | HE2328 | SR300×10 |
| SN630 | 135 | 320 | 118 | 680 | 180 | 55 | 190 | 245 | 250 | 390 | 560 | M30 | 1330K | 22330K | H2330 | HE2330 | SR320×10 |
| SN632 | 140 | 340 | 124 | 710 | 190 | 60 | 200 | 255 | 260 | 410 | 580 | M36 | 1332K | 22332K | H2332 | HE2332 | SR340×10 |
