SN605 SN606 SN607 SN608 SN609 SN610 SN611 SN612 SN613 SN615

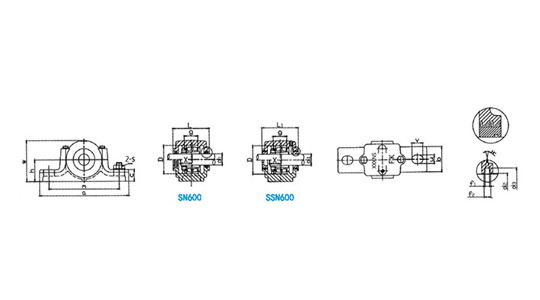

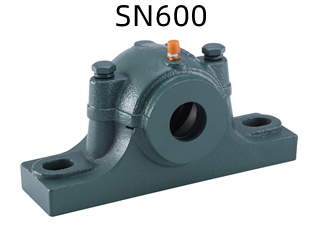

Split housing
| Bearing housing | Size(mm) | Bearing | Bushing | Locating ring | |||||||||||||
| d1 | D | g | a | b | c | h | L | L1 | W | m | s | ||||||
| SN605 | 20 | 62 | 34 | 185 | 52 | 22 | 50 | 80 | 83 | 92 | 150 | M12 | 1305K | 22305K | H305 | HE305 | SR62×8.5 |
| SN606 | 25 | 72 | 37 | 185 | 52 | 22 | 50 | 82 | 85 | 97 | 150 | M12 | 1306K | 22306K | H306 | HE306 | SR72×9 |
| SN607 | 30 | 80 | 41 | 205 | 60 | 25 | 60 | 90 | 93 | 112 | 70 | M12 | 1307K | 22307K | H307 | HE307 | SR80×10 |
| SN608 | 35 | 90 | 43 | 205 | 60 | 25 | 60 | 95 | 100 | 117 | 170 | M12 | 1308K | 22308K | H308 | HE308 | SR90×10 |
| SN609 | 40 | 100 | 46 | 255 | 70 | 28 | 70 | 105 | 110 | 132 | 210 | M16 | 1309K | 22309K | H309 | HE309 | SR100×10.5 |
| SN610 | 45 | 110 | 50 | 255 | 70 | 30 | 70 | 115 | 120 | 137 | 210 | M16 | 1310K | 22310K | H310 | HE310 | SR110×1.5 |
| SN611 | 50 | 120 | 53 | 275 | 80 | 30 | 80 | 120 | 125 | 150 | 230 | M16 | 1311K | 22311K | H311 | HE311 | SR120×12 |
| SN612 | 55 | 130 | 56 | 280 | 80 | 30 | 80 | 125 | 130 | 157 | 230 | M16 | 1312K | 22312K | H312 | HE312 | SR130×12.5 |
| SN613 | 60 | 140 | 58 | 315 | 90 | 32 | 95 | 130 | 135 | 175 | 260 | M20 | 1313K | 22313K | H313 | HE313 | SR140×12.5 |
| SN615 | 65 | 160 | 65 | 345 | 100 | 35 | 100 | 140 | 145 | 195 | 290 | M20 | 1315K | 22315K | H315 | HE315 | SR160×14 |
