Bearing
Bearing
Shanghai Anshu Mechanical&Electrical Equipment Co., Ltd.
Bearing
382930 382952 382960 382960X2 382968 382972X2 381030X2 381036X2 381040X2 381050/YB2 381156 381160X2 381160
382930 382952 382960 382960X2 382968 382972X2 381030X2 381036X2 381040X2 381050/YB2 381156 381160X2 381160
Rolling mill bearings
PRODUCT DETAILS

382930 382952 382960 382960X2 382968 382972X2 381030X2 381036X2 381040X2 381050/YB2 381156 381160X2 381160 382930 382952 382960 382960X2 382968 382972X2 381030X2 381036X2 381040X2 381050/YB2 381156 381160X2 381160

model d D B
382930 150 210 165
382952 260 360 265
382960 300 420 300
382960X2 300 420 310
382968 340 460 310
382972X2 360 480 480
381030X2 150 250 136
381036X2 180 280 180
381040X2 200 310 200
381050/YB2 250 460 270
381156 280 460 324
381160X2 300 500 350
381160 300 500 370

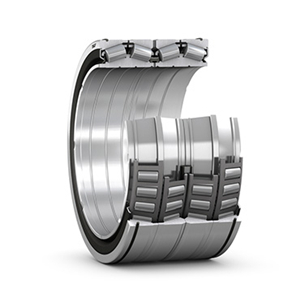

      Many low- or medium-speed rolling mill bearings use four-row tapered roller bearings. Due to its design, this bearing is capable of withstanding axial loads outside of radial loads. In general, no additional thrust bearings are required in the bearing arrangement, the roll journals can be relatively short, and the bearing housings on either side of the rolls can be of the same design. Due to the design of the four-row tapered roller bearing, this bearing must be mounted as a complete bearing on the chock. In order to be able to change rolls quickly, such bearings must be loosely fitted on the roll journal. The disadvantage of the loose fit is that the inner ring creeps on its base under the main load conditions, which usually causes wear of the base with a lower hardness than the bearing ring. In order to reduce the influence of loose fit to a certain extent, that is, to reduce wear, the bearing has a spiral groove in the inner ring hole, and/or an oil groove on the side of the inner ring. These oil grooves feed the lubricant to the contact surfaces of the inner ring and the base. In addition, the grease filled tank absorbs wear particles
