381164 381168 381172 381176 381180 381184 381188 381192 380641X2 380664 380676 380688 382052X2
381164 381168 381172 381176 381180 381184 381188 381192 380641X2 380664 380676 380688 382052X2
Rolling mill bearings
PRODUCT DETAILS

381164 381168 381172 381176 381180 381184 381188 381192 380641X2 380664 380676 380688 382052X2381164 381168 381172 381176 381180 381184 381188 381192 380641X2 380664 380676 380688 382052X2

model d D B
381164 320 540 406
381168 340 580 425
381172 360 600 420
381176 380 620 420
381180 400 650 456
381184 420 700 480
381188 440 720 480
381192 460 760 520
380641X2 205 320 205
380664 320 460 338
380676 380 550 350
380688 440 620 454
382052X2 260 400 255

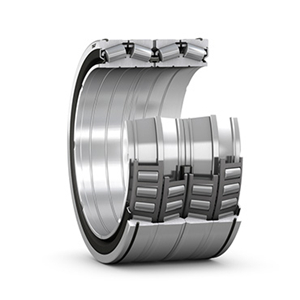

      Many low- or medium-speed rolling mill bearings use four-row tapered roller bearings. Due to its design, this bearing is capable of withstanding axial loads outside of radial loads. In general, no additional thrust bearings are required in the bearing arrangement, the roll journals can be relatively short, and the bearing housings on either side of the rolls can be of the same design. Due to the design of the four-row tapered roller bearing, this bearing must be mounted as a complete bearing on the chock. In order to be able to change rolls quickly, such bearings must be loosely fitted on the roll journal. The disadvantage of the loose fit is that the inner ring creeps on its base under the main load conditions, which usually causes wear of the base with a lower hardness than the bearing ring. In order to reduce the influence of loose fit to a certain extent, that is, to reduce wear, the bearing has a spiral groove in the inner ring hole, and/or an oil groove on the side of the inner ring. These oil grooves feed the lubricant to the contact surfaces of the inner ring and the base. In addition, the grease filled tank absorbs wear particles
