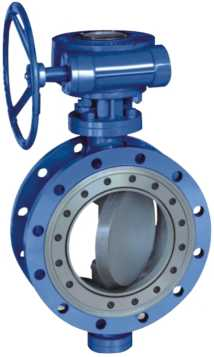

Laminated Metal-Seal Butterfly Valve

D373H-10C D373H-16C D373H-25 D673H-10C D673H-16C D673H-25 D973H-10C D973H-16C D973H-25 D373H-16R D673H-16R D973H-16R D373H-25R D673H-25R D973H-25R

PRODUCT DETAILS

多层次硬密封蝶阕 Laminated Metal-Seal Butterfly Valve

Laminated Metal-Seal Butterfly Valve

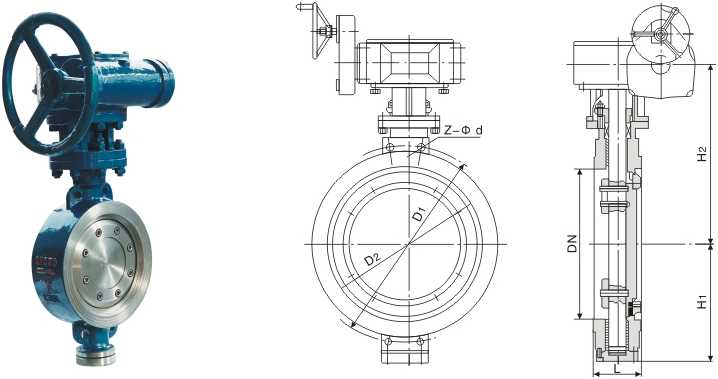

Type	DN	L	PN1.0MPa		PN1.6MPa		PN2.5MPa		H1	H2	WT (kg)
Type	DN	L	D1	Z-Φd	D1	Z-Φd	D1	Z-Φd	H1	H2	WT (kg)
D373H-10C D373H-16C D373H-25 D673H-10C D673H-16C D673H-25 D973H-10C D973H-16C D973H-25 D373H-16R D673H-16R D973H-16R D373H-25R D673H-25R D973H-25R	100	64	180	8-Φ18	180	8-Φ18	190	8-Φ22	110	330	19
	125	70	210	8-Φ18	210	8-Φ18	220	8-Φ26	120	345	30
	150	76	240	8-Φ23	240	8-Φ22	250	8-Φ26	160	370	35
	200	89	295	8-Φ23	295	12-Φ22	310	12-Φ26	215	410	50
	250	114	350	12-Φ23	355	12-Φ26	370	12-Φ30	260	430	60
	300	114	400	12-Φ23	410	12-Φ26	430	16-Φ30	300	500	85
	350	127	460	16-Φ23	470	16-Φ26	490	16-Φ33	320	510	130
	400	140	515	16-Φ25	525	16-Φ30	550	16-Φ36	330	520	150
	450	152	565	20-Φ25	585	20-Φ30	600	20-Φ36	380	590	200
	500	152	620	20-Φ25	650	20-Φ33	660	20-Φ36	390	610	265
	600	178	725	20-Φ30	770	20-Φ36	770	20-Φ39	450	665	415
	700	229	840	24-Φ30	840	24-Φ36	875	24-Φ42	480	730	590
	800	241	950	24-Φ34	950	24-Φ39	990	24-Φ48	580	910	750
	900	241	1050	28-Φ34	1050	28-Φ39	1090	28-Φ48	625	930	880
	1000	300	1160	28-Φ34	1170	28-Φ42	1210	28-Φ56	660	1000	1100
	1200	350	1380	32-Φ41	1390	32-Φ48	1420	32-Φ56	780	1100	1600
	1400	390	1590	36-Φ48	1590	36-Φ48	1640	36-Φ62	880	1220	2800
	1600	440	1820	40-Φ54	1820	40-Φ56	1860	40-Φ62	990	1330	4000
	1800	490	2020	44-Φ54	2020	44-Φ56	2070	44-Φ70	1090	1430	4900
	2000	540	2230	48-Φ54	2230	48-Φ62	2300		1200	1540	5850
