Up-loaded Biased Half Ball Valve
Up-loaded Biased Half Ball Valve
1.0MPa、1.6MPa
PRODUCT DETAILS

上装偏心半球阅 Up-loaded Biased Half Ball Valve

Up-loaded Biased Half Ball ValveUp-loaded Biased Half Ball Valve

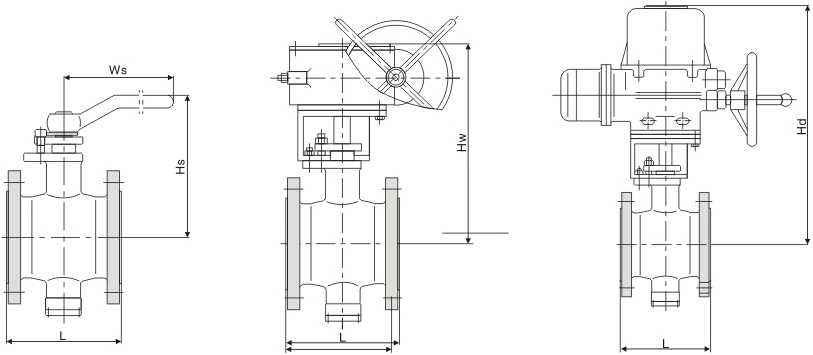

公称压力 PN 公称通径 尺寸(mm)
DN L D K d b z-Φdo Hw Hd
1.0MPa 100 229 220 180 156 22 8-Φ18 330 380
125 254 250 210 184 22 8-Φ18 345 405
150 267 285 240 211 24 8-Φ22 370 440
200 292 340 295 266 24 8-Φ22 405 470
250 330 395 350 319 26 12-Φ22 480 540
300 356 445 400 370 26 12-Φ22 520 580
350 430 505 460 429 26 16-Φ22 570 630
400 530 565 515 480 26 16-Φ22 630 710
450 580 615 565 530 28 20-Φ26 690 770
500 660 670 620 582 28 20-Φ26 740 820
600 840 780 725 682 34 20-Φ30 840 940
700 900 895 840 794 34 24-Φ30 960 1040
800 1000 1015 950 901 36 24-Φ33 1080 1180
900 1100 1115 1050 1001 38 28-Φ33 1190 1280
1000 1200 1230 1160 1112 38 28-Φ36 1310 1420
1200 1300 1455 1380 1328 44 32-Φ39 1420 1530
1400 1500 1675 1590 1530 48 32-Φ42 1540 1650
1.6Mpa 100 229 220 180 156 22 8-Φ18 330 380
125 254 250 210 184 22 8-Φ18 345 405
150 267 285 240 211 24 8-Φ22 370 440
200 292 340 295 266 24 12-Φ22 405 470
250 330 405 355 319 26 12-Φ26 480 540
300 356 460 410 370 28 12-Φ26 520 580
350 430 520 470 429 30 16-Φ26 570 630
400 530 580 525 480 32 16-Φ30 630 710
450 580 640 585 548 40 20-Φ30 690 770
500 660 715 650 6098 44 20-Φ33 740 820
600 840 840 770 720 54 20-Φ36 840 940
700 900 910 840 794 40 24-Φ36 960 1040
800 1000 1025 950 901 42 24-Φ39 1080 1180
900 1100 1125 1050 1001 44 28-Φ39 1190 1280
1000 1200 1255 1170 1112 46 28-Φ42 1310 1420
1200 1300 1485 1390 1328 52 32-Φ48 1420 1530
1400 1500 1685 1590 1530 58 36-Φ48 1540 1650
