Orbital Ball Valve

GQ47H-16C GQ47Y-16P GQ547H-16C GQ547Y-16P GQ6S47H-16C GQ6S47Y-16P GQ9B47H-16C GQ9B47Y-16P、GQ47H-16C GQ47Y-16P GQ547H-16C GQ547Y-16P GQ6S47H-16C GQ6S47Y-16P GQ9B47H-16C GQ9B47Y-16P

PRODUCT DETAILS

轨道式球阀 Orbital Ball Valve

Orbital Ball Valve

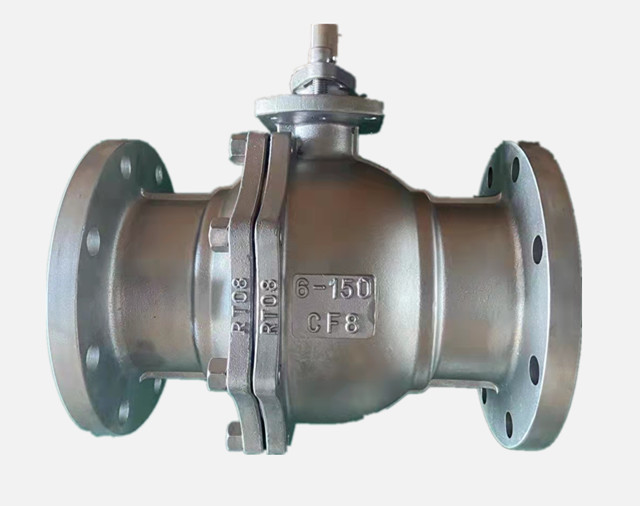

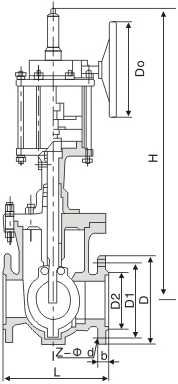

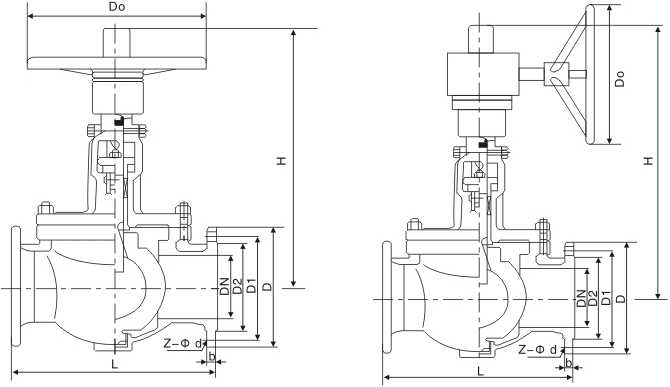

主要外形和连接尺寸 Main External and Connection Dimension									单位Unit: mm
产品型号 Type	公称通径 DN	PN1.6MPa								WT
产品型号 Type	公称通径 DN	L	D	D1	D2	b	Z-Φd	H	Do	(kg)
GQ47H-16C GQ47Y-16P GQ547H-16C GQ547Y-16P GQ6S47H-16C GQ6S47Y-16P GQ9B47H-16C GQ9B47Y-16P	50	216	165	125	100	16	4-Φ18	380	200	38
	65	290	185	145	120	18	4-Φ18	360	300	52
	80	310	200	160	135	20	8-Φ18	400	300	84
	100	350	220	180	155	20	8-Φ18	508	300	98
	150	480	285	240	210	24	8-Φ23	690	400	164
	200	600	340	295	265	26	12-Φ23	780	500	260
	250	730	405	355	320	30	12-Φ26	990	600	358
	300	850	460	410	375	30	12-Φ26	1180	600	460
	350	980	520	470	435	34	16-Φ26	1250	650	641
	400	1100	580	525	485	36	16-Φ30	1560	650	948
	450	1200	640	585	545	40	20-Φ30	1630	700	1276
	500	1250	715	650	608	44	20-Φ34	1700	700	1587
	600	1450	840	770	718	48	20-Φ36	1880	800	1863

产品型号 Type	公称通径 DN	PN2.5MPa									WT (kg)
产品型号 Type	公称通径 DN	L	D	D1	D2	D6	b	Z-Φd	H	Do	WT (kg)
GQ47H-16C GQ47Y-16P GQ547H-16C GQ547Y-16P GQ6S47H-16C GQ6S47Y-16P GQ9B47H-16C GQ9B47Y-16P	50	216	165	125	100	88	20	4-Φ18	380	200	42
	65	290	185	145	120	110	22	8-Φ18	390	300	58
	80	310	200	160	135	121	22	8-Φ18	400	300	94
	100	350	235	190	160	150	24	8-Φ23	508	300	109
	150	480	300	250	218	204	30	8-Φ26	690	400	175
	200	600	375	320	282	260	38	12-Φ30	780	500	285
	250	730	450	358	345	313	42	12-Φ34	990	600	378
	300	850	515	450	408	364	46	16-Φ34	1180	600	496
	350	980	580	510	465	422	52	16-Φ36	1250	650	657
	400	1100	660	585	535	474	58	16-Φ41	1560	650	984
	450	1200	685	610	560	524	60	20-Φ41	1630	700	1306
	500	1250	755	670	612	576	62	20-Φ42	1700	700	1601
	600	1450	890	795	730	676	62	20-Φ48	1880	800	1912
