American standard ball valve

Q41F-150Lb Q41F-150LbP Q341F-150Lb Q341F-150LbP Q641F-150Lb Q641F-150LbP Q9B41F-150Lb Q9B41F-150LbP、Q41F-600Lb Q41F-600LbP Q341F-600Lb Q341F-600LbP Q641F-600Lb Q641F-600LbP Q9B41F-600Lb Q9B41F-600LbP

PRODUCT DETAILS

美标球阀 American standard ball valve

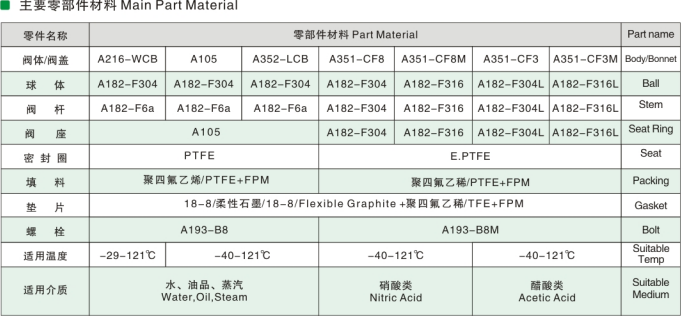

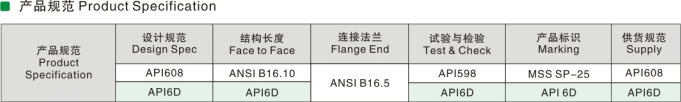

American standard ball valve

产品型号 Type	NPS	DN	Class 150Lb								WT (Kg)

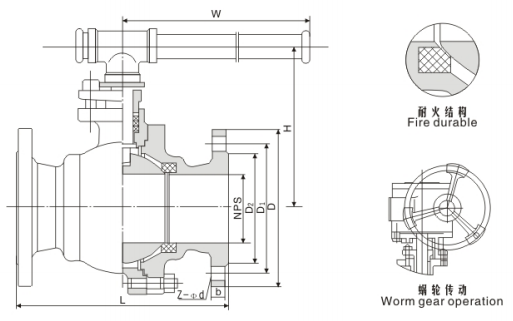

产品型号 Type	in	mm	L	D	D1	D2	b	Z-Φd	H	W	WT (Kg)
Q41F-150Lb Q41F-150LbP Q341F-150Lb Q341F-150LbP Q641F-150Lb Q641F-150LbP Q9B41F-150Lb Q9B41F-150LbP	1/2"	15	108	89	60.3	34.9	11.2	4-Φ15.8	55	130	2.3
	3/4"	20	117	98	39.8	42.9	12.7	4-Φ15.8	55	130	3
	1"	25	127	108	79.4	50.8	14.3	4-Φ15.8	70	160	4.5
	11/4"	32	140	117	88.9	63.5	15.7	4-Φ15.8	75	160	5.5
	11/2"	40	165	127	98.4	73	17.5	4-Φ15.8	90	200	7
	2"	50	178	152	120.6	92.1	19.1	4-Φ19	104	350	9.5
	21/2"	65	191	178	139.7	104.8	22.3	4-Φ19	153	400	15
	3"	80	203	190	152.4	127	23.9	4-Φ19	187	500	19
	4"	100	229	229	190.5	157.2	23.9	8-Φ19	206	500	33
	5"	125	355	229	215.9	185.7	23.9	8-Φ22.2	244	600	58
	6"	150	394	279	241.3	215.9	25.4	8-Φ22.2	252	600	93
	6"	200	457	343	298.4	269.9	28.5	8-Φ22.2	283	800	160
	10"	250	533	406	362	323.8	30.2	12-Φ25.4	345	800	200

产品型号 Type	NPS	DN	Class 300Lb								WT (Kg)
产品型号 Type	in	mm	L	D	D1	D2	b	Z-Φd	H	W	WT (Kg)
Q41F-300Lb Q41F-300LbP Q341F-300Lb Q341F-300LbP Q641F-300Lb Q641F-300LbP Q9B41F-300Lb Q9B41F-300LbP	1/2"	15	140	95	66.7	34.9	14.2	4-Φ15.8	55	130	2.5
	3/4"	20	152	117	82.6	42.9	15.7	4-Φ19	55	130	3.5
	1"	25	165	124	88.9	50.8	17.5	4-Φ19	70	160	5.5
	11/4"	32	178	133	98.4	63.5	19	4-Φ19	75	160	8
	11/2"	40	190	156	114.3	73	20.6	8-Φ19	90	200	10.5
	2"	50	216	165	127	92.1	22.4	8-Φ22.2	104	350	14.5
	21/2"	65	241	190	149.2	104.8	25.4	8-Φ22.2	153	400	23.5
	3"	80	283	210	168.3	127	28.4	8-Φ22.2	187	500	30
	4"	100	305	254	200	157.2	31.8	8-Φ22.2	206	500	55
	5"	125	381	279	235	185.7	35	12-Φ22.2	244	600	81
	6"	150	403	318	269.9	215.9	36.6	12-Φ22.2	252	600	118
	8"	200	502	381	330.2	269.9	41.1	12-Φ25.4	283	800	200
	10"	250	568	444	387.4	323.8	47.6	16-Φ28.5	345	800	250

产品型号 Type	NPS	DN	Class 600Lb								WT (Kg)
产品型号 Type	in	mm	L	D	D1	D2	b	Z-Φd	H	W	WT (Kg)
Q41F-600Lb Q41F-600LbP Q341F-600Lb Q341F-600LbP Q641F-600Lb Q641F-600LbP Q9B41F-600Lb Q9B41F-600LbP	1/2"	15	165	95	66.7	34.9	14.2	4-Φ15.8	70	-	3.8
	3/4"	20	190	117	82.6	42.9	15.7	4-Φ19	70	-	5.1
	1"	25	216	124	88.9	50.8	17.5	4-Φ19	75	-	7.2
	11/4"	32	229	133	98.4	63.5	19	4-Φ19	80	-	10.5
	11/2"	40	241	156	114.3	73	20.6	4-Φ22.2	98	-	17.6
	2"	50	292	165	127	92.1	22.4	8-Φ19	155	400	20
	21/2"	65	330	190	149.2	104.8	25.4	8-Φ22.2	205	400	32
	3"	80	356	210	168.3	127	28.4	8-Φ22.2	238	600	41
	4"	100	632	273	215.9	157.2	31.8	8-Φ25.4	276	600	70
	5"	125	508	330	266.7	185.7	35	8-Φ28.5	305	600	110
	6"	150	559	356	292.1	215.9	36.6	12-Φ28.5	322	800	150
	8"	200	660	419	349.2	269.9	41.1	12-Φ31.8	356	800	200
	10"	250	787	508	431.8	323.8	47.6	16-Φ35	400	800	280
