Inside Screw Ball Valve、Outside Screw Ball Valve
Q11F-16C Q11F-16P Q11F-16R Q11F-25C Q11F-25P Q11F-25R Q11F-40C Q11F-40P Q11F-40R Q11F-150Lb Q11Y-300Lb、

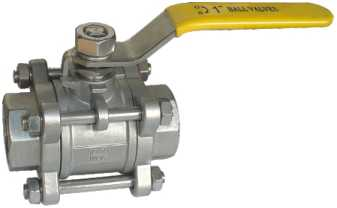

内螺纹球阀 Inside Screw Ball Valve

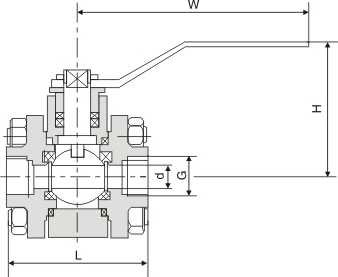

| 主要外形和连接尺寸 Main External and Connection Dimenion | 单位 Unit:mm | ||||||
| 产品型号 Type | 公称通径 DN | PN1.6/2.5/4.0MPa Class 150Lb/Class 300Lb | WT (kg) | ||||
| L | d | G | H | W | |||
| Q11F-16C Q11F-16P Q11F-16R Q11F-25C Q11F-25P Q11F-25R Q11F-40C Q11F-40P Q11F-40R Q11F-150Lb Q11Y-300Lb |
10 | 65 | 8 | 3/8" | 40 | 110 | 0.6 |
| 15 | 75 | 11 | 1/2，， | 46 | 110 | 0.72 | |
| 20 | 80 | 14 | 3/4" | 54 | 110 | 0.9 | |
| 25 | 90 | 21 | 1" | 64 | 140 | 1.7 | |
| 32 | 110 | 25 | 11/4" | 69 | 140 | 1.9 | |
| 40 | 120 | 32 | 11/2" | 76 | 155 | 3.1 | |
| 50 | 140 | 38 | 2" | 86 | 180 | 4.3 | |

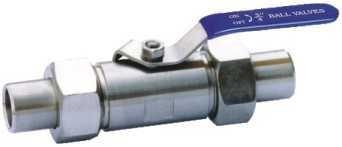

外螺纹球阀 Outside Screw Ball Valve

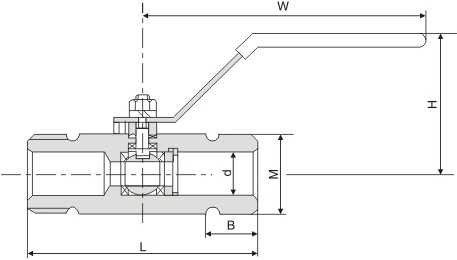

| 产品型号 Type | 公称通径 DN | PN1.6/2.5/4.0MPa Class 150Lb/Class 300Lb | WT (kg) | |||||
| L | d | M | B | H | W | |||
| Q21F-16C Q21F-16P Q21F-16R Q21F-25C Q21F-25P Q21F-25R Q21F-40C Q21F-40P Q21F-40R Q21F-150Lb Q21F-300Lb |
6 | 60 | 8 | M20X1.5 | 15 | 38 | 110 | 0.4 |
| 10 | 60 | 10 | M24x1.5 | 16 | 40 | 110 | 0.45 | |
| 15 | 60 | 10 | M30x2 | 18 | 42 | 110 | 0.5 | |
| 20 | 67 | 13.5 | M36x2 | 18 | 62 | 110 | 0.6 | |
| 25 | 73 | 18 | M42x2 | 20 | 68 | 110 | 0.9 | |
| 32 | 90 | 22 | M52x2 | 20 | 75 | 150 | 1.4 | |
| 40 | 98 | 26 | M60x2 | 25 | 83 | 150 | 2.1 | |
| 50 | 112 | 32.8 | M72x2 | 25 | 90 | 150 | 2.6 | |
