Electric Gate valve

Z941H-16C Z940H-16C Z941W-16P Z940W-16P Z941Y-16P Z940Y-16P Z941Y-16R Z940Y-16R Z941Y-16I Z940Y-16I KZ941Y-16C KZ940Y-16C Z9B40H-16C Z9B4OY-16P

PRODUCT DETAILS

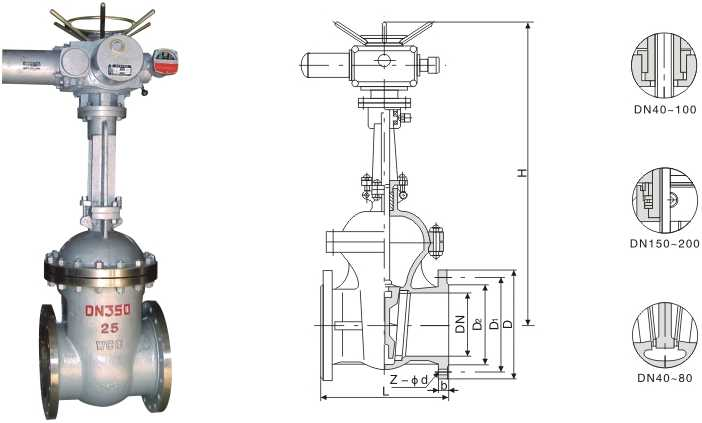

电动闸阀 Electric Gate valve

Electric Gate valve

产品型号 Type	公称通径 DN	PN1.6MPa							选配电装 E.A.	WT (kg)
产品型号 Type	公称通径 DN	L	D	D1	D2	B	Z-Φd	H	选配电装 E.A.	WT (kg)
Z941H-16C Z940H-16C Z941W-16P Z940W-16P Z941Y-16P Z940Y-16P Z941Y-16R Z940Y-16R Z941Y-16I Z940Y-16I KZ941Y-16C KZ940Y-16C Z9B40H-16C Z9B4OY-16P	40	200	145	110	85	16	4-Φ18	595	DZW15	56
	50	250	160	125	100	16	4-Φ18	653	DZW20	59
	65	265	180	145	120	18	4-Φ18	665	DZW20	62
	80	280	195	160	135	20	8-Φ18	725	DZW20	74
	100	300	215	180	155	20	8-Φ18	787	DZW20	92
	150	350	280	240	210	24	8-Φ23	955	DZW30	161
	200	400	335	295	265	26	12-Φ23	1105	DZW30	219
	250	450	405	355	320	30	12-Φ25	1343	DZW45	376
	300	500	460	410	375	30	12-Φ25	1516	DZW60	484
	350	550	520	470	435	34	16-Φ25	1678	DZW60	695
	400	600	580	525	485	36	16-Φ30	1849	DZW90	977
	450	650	640	585	545	40	20-Φ30	1937	DZW90	1033
	500	700	705	650	608	44	20-Φ34	2234	DZW120	1087
	600	800	840	770	718	48	20-Φ41	2232	DZW180	1357
	700	900	910	840	788	50	24-Φ41	2489	DZW250	1481
	800	1000	1020	950	898	52	24-Φ41	2643	DZW350	1845
	900	1100	1120	1050	998	54	28-Φ41	2935	DZW500	2100
	1000	1200	1255	1170	1110	56	28-Φ48	3410	DZW500	2650

产品型号 Type	公称通径 DN	PN2.5MPa							选配电装 E.A.	WT (kg)
产品型号 Type	公称通径 DN	L	D	D1	D2	b	Z-Φd	H	选配电装 E.A.	WT (kg)
Z941H-25 Z940H-25 Z941W-25P Z940W-25P Z941Y-25P Z940Y-25P Z941Y-25R Z940Y-25R Z941Y-25I Z940Y-25I KZ941Y-25C KZ94OY-25C Z9B41H-25 Z9B41Y-25P	40	200	145	110	85	18	4-Φ18	595	DZW15	60
	50	250	160	125	100	20	4-Φ18	653	DZW20	64
	65	265	180	145	120	22	8-Φ18	665	DZW20	65
	80	280	195	160	135	22	8-Φ18	725	DZW20	79
	100	300	230	190	160	24	8-Φ23	787	DZW20	98
	125	325	270	220	188	28	8-Φ25	902	DZW30	154
	150	350	300	250	218	30	8-Φ25	955	DZW30	168
	200	400	360	310	278	34	12-Φ25	1105	DZW45	219
	250	425	425	370	332	36	12-Φ30	1343	DZW45	390
	300	450	485	430	390	40	12-Φ30	1416	DZW60	505
	350	550	550	490	448	44	16-Φ30	1678	DZW60	736
	400	600	610	550	505	48	16-Φ34	1849	DZW90	1027
	450	650	660	600	555	50	16-Φ34	1937	DZW90	1139
	500	700	730	660	610	52	20-Φ34	2234	DZW120	1228
	600	800	840	770	718	56	20-Φ41	2432	DZW180	1502
	700	900	955	875	815	60	20-Φ41	2489	DZW250	1617
	800	1000	1070	990	930	64	24-Φ48	2643	DZW350	1923
	900	1100	1180	1090	1025	66	24-Φ48	2935	DZW500	2200
	1000	1200	1305	1210	1140	68	28-Φ54	2410	DZW500	2800

产品型号 Type	公称通径 DN	PN4.0MPa								选配电装 E.A.	WT (kg)
产品型号 Type	公称通径 DN	L	D	D1	D2	D6	b	Z-Φd	H	选配电装 E.A.	WT (kg)
Z941H-40 Z940H-40 Z941Y-40P Z940Y-40P Z941Y-40R Z940Y-40R Z941Y-40I Z940Y-40I KZ941Y-40 KZ940Y-40 Z9B41H-40 Z9B41Y-40P	40	200	145	110	85	76	18	4-Φ18	617	DZW15	46
	50	250	160	125	100	88	20	4-Φ18	665	DZW20	58
	65	280	180	145	120	110	22	8-Φ18	680	DZW20	68
	80	310	195	160	135	121	22	8-Φ18	752	DZW20	80
	100	350	230	190	160	150	24	8-Φ23	846	DZW30	108
	150	450	300	250	218	204	30	8-Φ25	1087	DZW45	258
	200	550	375	320	282	260	38	12-Φ30	1243	DZW45	366
	250	650	445	385	345	313	42	12-Φ34	1429	DZW60	472
	300	750	510	450	408	364	46	16-Φ34	1608	DZW90	673
	350	850	570	510	465	422	52	16-Φ34	1738	DZW90	804
	400	950	655	585	535	474	58	16-Φ41	1897	DZW120	1081


产品型号 Type	公称通径 DN	PN6.4MPa								选配电装 E.A.	WT (kg)
产品型号 Type	公称通径 DN	L	D	D1	D2	D6	b	Z-Φd	H	选配电装 E.A.	WT (kg)
Z940H-64 Z941Y-64P Z940Y-64P Z941Y-64R Z940Y-64R Z941Y-64I Z940Y-64I KZ941Y-25I KZ940Y-25I Z9B41H-64 Z9B41Y-64P	50	250	175	135	105	88	26	4-Φ23	667	DZW20	68
	65	280	200	160	130	110	28	8-Φ23	685	DZW20	72
	80	310	210	170	140	121	30	8-Φ23	748	DZW30	88
	100	350	250	200	168	150	32	8-Φ25	845	DZW30	117
	150	450	340	280	240	204	88	8-Φ34	1009	DZW45	314
	200	550	405	345	300	260	44	12-Φ34	1253	DZW60	432
	250	650	470	400	345	313	48	12-Φ41	1449	DZW60	595
	300	750	530	460	412	361	54	16-Φ41	1867	DZW90	721
	350	850	595	525	475	422	60	16-Φ41	1931	DZW120	863
	400	950	670	585	525	474	66	16-Φ48	2017	DZW180	1129

产品型号 Type	公称通径 DN	PN10.0MPa								选配电装 E.A.	WT (kg)
产品型号 Type	公称通径 DN	L	D	D1	D2	D6	b	Z-Φd	H	选配电装 E.A.	WT (kg)
Z941H-100 Z940H-100 Z941Y-100P Z940Y-100P Z941Y-100R Z940Y-100R Z941Y-100I Z940Y-100I Z940Y-100 Z9B41H-100 Z9B41Y-100 Z9B41Y-100P	40	241	165	125	95	76	26	4-Φ23	730	DZW20	60
	50	250	195	145	112	88	28	4-Φ25	781	DZW20	78
	65	280	220	170	138	110	32	8-Φ25	830	DZW20	96
	80	310	230	180	148	121	34	8-Φ25	865	DZW30	126
	100	350	265	210	172	150	38	8-Φ30	1179	DZW30	134
	150	450	350	290	250	204	46	12-Φ34	1201	DZW60	352
	200	550	430	360	312	260	54	12-Φ41	1611	DZW90	484
	250	650	500	430	383	313	60	12-Φ41	1903	DZW90	608
	300	750	585	500	442	364	70	16-Φ48	2054	DZW120	757
	350	850	655	560	498	422	76	16-Φ54	2132	DZW180	994
	400	950	715	620	558	474	80	16-Φ54	2321	DZW250	1269

产品型号 Type	公称通径 DN	PN16.0MPa								选配电装 E.A.	WT (kg)
产品型号 Type	公称通径 DN	L	D	D1	D2	D6	b	Z-Φd	H	选配电装 E.A.	WT (kg)
Z941H-160 Z940H-160 Z941Y-160P Z940Y-160P Z941Y-160R Z940Y-160R Z941Y-160I Z940Y-160I KZ941Y-160 KZ940Y-160 Z9B41H-160 Z9B41Y-160P	40	260	175	125	92	76	32	4-Φ27	812	DZW20	93
	50	300	215	165	132	88	36	8-Φ25	905	DZW20	101
	65	340	245	190	152	110	44	8-Φ30	968	DZW20	137
	80	390	260	205	168	121	46	8-Φ30	978	DZW30	167
	100	450	300	240	200	150	48	8-Φ34	1043	DZW30	211
	125	525	355	285	238	176	60	8-Φ41	1248	DZW60	424
	150	600	390	318	270	204	66	12-Φ41	1394	DZW90	588
	200	750	480	400	345	250	78	12-Φ48	1621	DZW120	839
	250	850	580	485	425	313	88	12-Φ54	1953	DZW120	1050
	300	950	665	510	510	364	100	16-Φ54	2411	DZW180	1265
	350	—	640	559	424	414.5	86	20-Φ42	2850	DZW250	1613
	400	—	705	616	481	471.5	89	20-Φ45	3293	DZW250	2100
