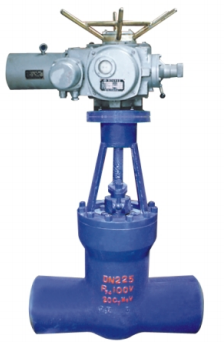

High temperature and high pressure gate valves
Z960Y-250 Z960Y-320 Z960Y-P54170V Z960Y-P54100V
高温高压电站闸阀 High temperature and high pressure gate valves

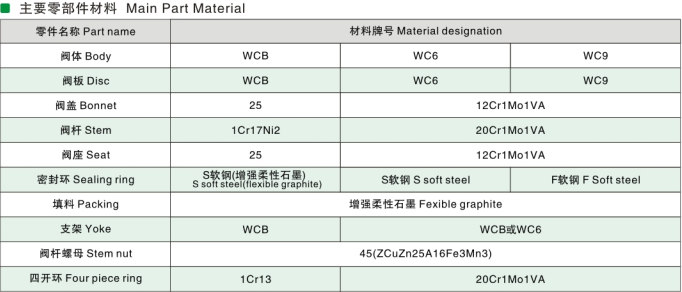

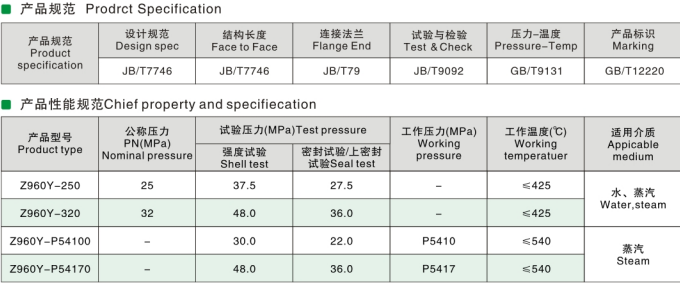

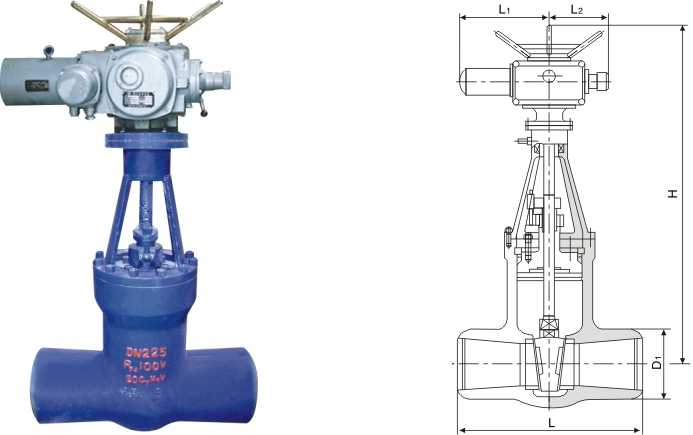

| 产品型号 Type | 公称通径 DN | 主要外形尺寸和连接尺寸(mm ) Main external and connecting dimensions | 电动装置 Electric dewice | WT(kg) | ||||
| d | L | H | L1 | L2 | ||||
| Z960Y-250 | 100 | 84 | 406 | 1164 | 437 | 277 | DZW45 | 234 |
| 125 | 100 | 483 | 1402 | 437 | 277 | DZW60 | 343 | |
| 175 | 158 | 711 | 1650 | 554 | 309 | DZW180 | 638 | |
| 225 | 200 | 864 | 1650 | 554 | 309 | DZW180 | 654 | |
| 300 | 280 | 1067 | 2106 | 764 | 398 | DZW350 | 1973 | |
| Z960Y-320 | 100 | 96 | 533 | 1236 | 437 | 277 | DZW180 | 291 |
| 125 | 118 | 610 | 1302 | 437 | 277 | DZW180 | 315 | |
| 150 | 148 | 762 | 1403 | 526 | 283 | DZW180 | 672 | |
| 175 | 148 | 762 | 1650 | 554 | 309 | DZW180 | 684 | |
| 225 | 222 | 1041 | 1650 | 554 | 309 | DZW250 | 696 | |
| Z960Y-P54170V | 175 | 148 | 762 | 1650 | 554 | 309 | DZW60 | 683 |
| 225 | 222 | 1041 | 1650 | 554 | 309 | DZW180 | 704 | |
| 250 | 222 | 1041 | 1795 | 554 | 309 | DZW500 | 1214 | |
| 300 | 294 | 1245 | 2080 | 554 | 309 | DZW500 | 2125 | |
| Z960Y-P54100V | 125 | 98 | 630 | 1230 | 437 | 277 | DZWC-4 | 312 |
| 225 | 186 | 1060 | 1680 | 554 | 309 | 1401 | ||
| 300 | 278 | 1397 | 2265 | 764 | 2834 | |||
| 325 | 310 | 1448 | 2265 | 690 | 398 | 2632 | ||
| 350 | 338 | 1550 | 2536 | 715 | 5591 | |||
