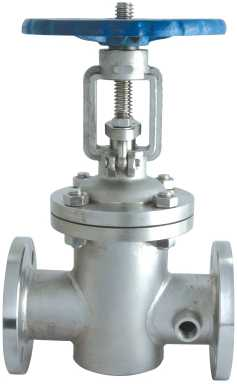

Jacket Gate Valve
BZ41H-16C BZ41W-16P BZ41W-16R BZ41H-25 BZ41W-25P BZ41W-25R
保温闸阀 Jacket Gate Valve

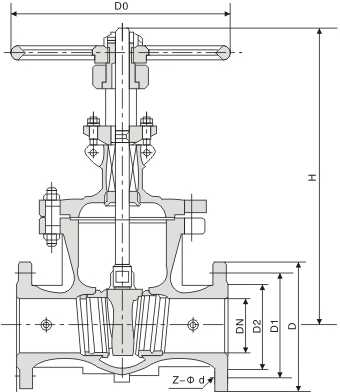

| 产品型号 Type | 公称通径 DN | PN1.6/2.5MPa | WT (kg) | |||||||
| L | D | D1 | D2 | b | Z-Φd | H | D0 | |||
| BZ41H-16C BZ41W-16P BZ41W-16R |
40 | 200 | 160 | 125 | 100 | 18 | 4-Φ18 | 310 | 200 | 49 |
| 50 | 250 | 180 | 145 | 120 | 18 | 4-Φ18 | 358 | 240 | 54 | |
| 65 | 265 | 195 | 160 | 135 | 20 | 8-Φ18 | 373 | 240 | 81 | |
| 80 | 280 | 215 | 180 | 155 | 20 | 8-Φ18 | 435 | 280 | 100 | |
| 100 | 300 | 245 | 210 | 185 | 22 | 8-Φ18 | 500 | 300 | 120 | |
| 125 | 325 | 280 | 240 | 210 | 24 | 8-Φ23 | 614 | 320 | 210 | |
| 150 | 350 | 335 | 295 | 265 | 26 | 12-Φ23 | 674 | 360 | 260 | |
| 200 | 400 | 405 | 355 | 320 | 30 | 12-Φ25 | 818 | 400 | 300 | |
| 250 | 450 | 460 | 410 | 375 | 30 | 12-Φ25 | 969 | 450 | 400 | |
| 300 | 500 | 520 | 470 | 435 | 34 | 16-Φ25 | 1145 | 560 | 490 | |
| BZ41H-25 BZ41W-25P BZ41W-25R |
40 | 200 | 160 | 125 | 100 | 20 | 4-Φ18 | 358 | 240 | 52 |
| 50 | 250 | 180 | 145 | 120 | 22 | 8-Φ18 | 373 | 240 | 56 | |
| 65 | 265 | 195 | 160 | 135 | 22 | 8-Φ18 | 435 | 280 | 86 | |
| 80 | 280 | 230 | 190 | 160 | 24 | 8-Φ18 | 500 | 300 | 105 | |
| 100 | 300 | 270 | 220 | 188 | 28 | 8-Φ18 | 614 | 320 | 170 | |
| 125 | 350 | 300 | 250 | 218 | 30 | 8-Φ25 | 674 | 360 | 245 | |
| 150 | 350 | 360 | 310 | 278 | 34 | 12-Φ25 | 818 | 400 | 270 | |
| 200 | 400 | 425 | 370 | 332 | 36 | 12-Φ30 | 969 | 450 | 380 | |
| 250 | 450 | 485 | 430 | 390 | 40 | 12-Φ30 | 1145 | 560 | 535 | |
| 300 | 500 | 550 | 490 | 448 | 44 | 16-Φ34 | 1145 | 640 | 546 | |
