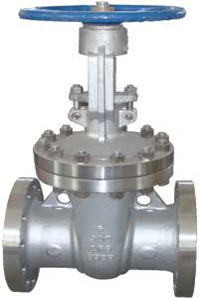

ANSI Gate Valve

Z40H-150Lb (Body:WCB) Z40H-150Lbp (Body:CF8) Z40H-150Lb (Body:CF8) Z40H-150LbR (Body:CF8M) Z40H-150LbPL (Body:CF3) Z40H-150LbRL (Body:CF3M)

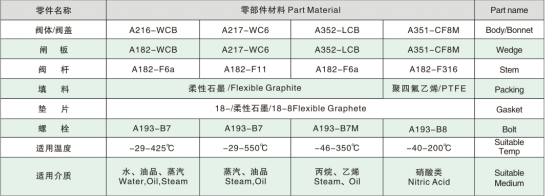

PRODUCT DETAILS

磅级闸阀 ANSI Gate Valve

ANSI Gate Valve

产品型号 Type	NPS	DN	Class 150Lb								WT
产品型号 Type	in	mm	L	D	D1	D2	b	Z-Φd	H	Do	(Kg)
Z40H-150Lb (Body:WCB) Z40H-150Lbp (Body:CF8) Z40H-150Lb (Body:CF8) Z40H-150LbR (Body:CF8M) Z40H-150LbPL (Body:CF3) Z40H-150LbRL (Body:CF3M)	2"	50	178	152	120.5	92	16	4-Φ19	323	200	18
	21/2”	65	190	178	139.5	105	18	4-Φ19	347	250	28
	3"	80	203	190	152.5	127	19	4-Φ19	383	250	30
	4"	100	229	229	190.5	157	24	8-Φ19	457	300	50
	5"	125	254	254	216	186	24	8-Φ22	632	300	63
	6"	150	267	279	241.5	216	26	8-Φ22	635	350	85
	8"	200	292	343	298.5	270	29	8-Φ22	762	350	128
	10"	250	330	406	362	324	31	12-Φ25	895	400	220
	12"	300	356	483	432	381	32	12-Φ25	1080	500	310
	14"	350	381	533	476	413	35	12-Φ29	1295	600	450
	16"	400	406	597	540	470	37	16-Φ29	1435	600	550
	18'	450	432	635	578	533	40	16-Φ32	1626	650	700
	20"	500	457	698	635	584	43	20-Φ32	1829	650	910
	24"	600	508	813	749.5	692	48	20-Φ35	2175	700	1130
	28"	700	610	984	914.5	857	75	28-Φ35	2695	700	2230

产品型号 Type	NPS	DN	Class 300 Lb								WT
产品型号 Type	in	mm	L	D	D1	D2	b	Z-Φd	H	Do	(Kg)
Z40H-300Lb (Body:WCB) Z40H-300Lbp (Body:CF8) Z40H-300Lb (Body:CF8) Z40H-300LbR (Body:CF8M) Z40H-300LbPL (Body:CF3) Z40H-300LbRL (Body:CF3M)	2	50	216	165	127	92	22	8-Φ19	330	250	30
	21/2”	65	241	190	149	105	25	8-Φ22	368	250	36
	3	80	283	210	168.5	127	29	8-Φ22	394	300	61
	4	100	305	254	200	157	32	8-Φ22	473	300	77
	5	125	381	279	235	186	35	8-Φ22	660	350	106
	6	150	403	318	270	216	37	12-Φ22	711	350	153
	8	200	419	381	330	270	41	12-Φ25	813	400	286
	10	250	457	444	387.5	324	48	16-Φ29	1003	500	412
	12	300	502	521	451	381	51	16-Φ32	1137	600	576
	14	350	762	584	514.5	413	54	20-Φ32	1489	600	886
	16	400	838	648	571.5	470	57	20-Φ35	1581	650	1175
	18	450	914	711	628.5	533	60	24-Φ35	2017	838	1301
	20	500	991	775	686	584	64	24-Φ35	2228	889	1672
	24	600	1143	914	813	692	70	24-Φ41	2650	1092	2562

产品型号 Type	NPS	DN	Class 600 Lb								WT
产品型号 Type	in	mm	L	D	D1	D2	b	Z-Φd	H	Do	(Kg)
Z40H-600Lb (Body:WCB) Z40H-600Lbp (Body:CF8) Z40H-600Lb (Body:CF8) Z40H-600LbR (Body:CF8M) Z40H-600LbPL (Body:CF3) Z40H-600LbRL (Body:CF3M)	2	50	292	165	127	92	33	8-Φ19	510	254	44
	21/2”	65	330	190	149	100	36	8-Φ22	554	254	60
	3	80	356	210	168	127	39	8-Φ22	595	305	80
	4	100	432	273	216	157	45	8-Φ25	712	356	145
	5	125	508	330	266.5	186	52	8-Φ29	826	406	236
	6	150	559	356	292	216	55	12-Φ29	995	508	309
	8	200	660	419	349	270	63	12-Φ32	1157	610	522
	10	250	787	508	432	324	71	16-Φ35	1373	686	779
	12	300	838	559	489	381	74	20-Φ35	1603	686	1108
	14	350	889	603	527	413	77	20-Φ38	1930	762	1503
	16	400	991	686	603	470	84	20-Φ41	2032	889	1939
	18	450	1092	743	654	533	90	20-Φ44	2286	889	2733
	20	500	1194	813	724	584	96	24-Φ44	2591	1118	3214
	24	600	1397	940	838	692	109	24-Φ52	3124	1118	4177
