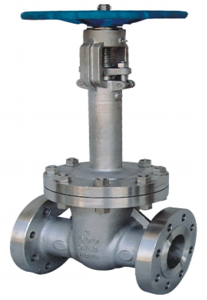

ANSI Cryogenic Gate Valve

DZ40Y-150Lb DZ40Y-300Lb DZ40Y-600Lb

PRODUCT DETAILS

磅级低温闸阀 ANSI Cryogenic Gate Valve

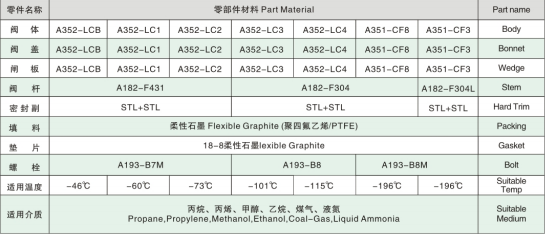

ANSI Cryogenic Gate Valve

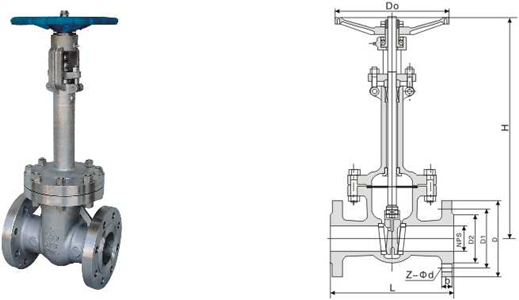

产品型号 Type	NPS	DN	Class 150Lb								WT
产品型号 Type	in	mm	L	D	D1	D2	b	Z-Φd	H	Do	(Kg)
DZ40Y-150Lb	1"	25	127	108	79.5	51	12	4-Φ15	350	100	9
	11/4"	32	140	117	89	64	13	4-Φ15	385	100	11
	11/2"	40	165	127	98.5	73	15	4-Φ15	420	140	15
	2"	50	178	152	120.5	92	16	4-Φ19	540	200	23
	21/2"	65	190	178	139.7	105	18	4-Φ19	610	250	27
	3"	80	203	190	152.5	127	19	4-Φ19	690	250	40
	4"	100	229	229	190.5	157	23.9	8-Φ19	780	250	50
	5"	125	254	254	215.9	186	25.4	8-Φ22	930	300	70
	6"	150	267	279	241.5	216	28.5	8-Φ22	980	300	85
	8"	200	292	343	298.5	270	30.2	8-Φ22	1180	350	135
	10"	250	330	406	362	324	31.2	12-Φ25	1390	400	180
	12"	300	356	483	432	381	31.8	12-Φ25	1620	450	265
	14"	350	381	533	476.5	413	35	12-Φ29	1810	500	420
	16"	400	406	597	539.5	470	36.6	16-Φ29	1970	600	550

产品型号 Type	NPS	DN	Class 300Lb								WT
产品型号 Type	in	mm	L	D	D1	D2	b	Z-Φd	H	Do	(Kg)
DZ40Y-300Lb	1"	25	165	124	89	51	18	4-Φ19	360	125	10
	11/4"	32	178	133	98.5	63	19	4-Φ19	390	160	15
	11/2"	40	190	156	114.5	73	21	4-Φ22	420	160	20
	2"	50	216	165	127	92	22.3	8-Φ19	575	200	30
	21/2"	65	241	190	149.4	105	25	8-Φ22	635	250	38
	3"	80	283	210	168	127	28.5	8-Φ22	715	250	51
	4"	100	305	256	200	157	31.8	8-Φ22	85	250	79
	5"	125	381	279	235	186	35	8-Φ22	865	300	115
	6"	150	403	318	270	216	36.6	12-Φ22	1025	350	140
	8"	200	419	381	330	270	41.3	12-Φ25	1225	400	220
	10"	250	457	444	387.5	324	47.7	16-Φ29	1440	450	290
	12"	300	502	521	451	381	50.8	16-Φ32	1665	500	410
	14"	350	762	584	514.5	413	54	20-Φ32	1880	600	600
	16"	400	838	648	571.5	470	57.2	20-Φ35	2050	600	750

产品型号 Type	NPS	DN	Class 600Lb								WT
产品型号 Type	in	mm	L	D	D1	D2	b	Z-Φd	H	Do	(Kg)
DZ40Y-600Lb	1"	25	216	124	89	51	18	4-Φ19	380	160	15
	A"	32	229	133	98.5	63	21	4-Φ19	430	200	20
	11/2"	40	241	156	114.5	73	23	4-Φ22	575	200	30
	2"	50	292	165	127	92	25.4	8-Φ19	630	250	45
	21/2"	65	330	190	149.4	100	29	8-Φ22	700	250	58
	3"	80	356	210	168	127	31.8	8-Φ22	760	250	75
	4"	100	432	273	216	157	38.1	8-Φ25	900	350	126
	5"	125	511	330	266.5	186	44	8-Φ29	990	350	186
	6"	150	559	356	292	216	47.7	12-Φ29	1070	450	260
	8"	200	660	419	349	270	55.6	12-Φ32	1280	500	385
	10"	250	787	508	432	324	63.5	16-Φ35	1500	600	500
	12"	300	838	559	489	381	66.7	20-Φ35	1740	680	574
	14"	350	889	603	527	413	70	20-Φ39	1890	720	740
	16"	400	991	686	603	470	77	20-Φ41	2125	720	920
