Forged Gate Valve

Z41H-16C Z41H-25 Z41H-40 Z11H-16C Z11H-25 Z11H-40 Z61H-16C Z61H-25 Z61H-40 Z41H-64 Z11H-64 Z61H-64 Z41Y-100 Z11Y-100 Z61Y-100 Z41Y-160 Z11Y-160 Z61Y-160 Z41Y-800Lb Z11Y-800Lb Z61Y-800Lb

PRODUCT DETAILS

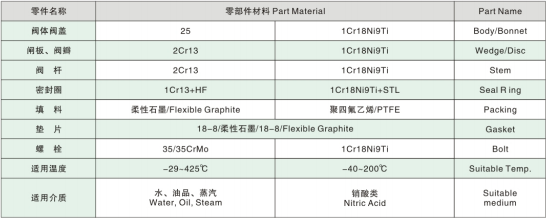

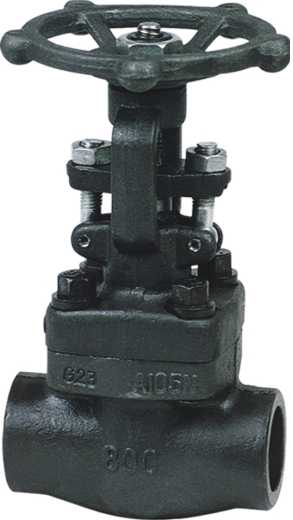

锻钢闸阀 Forged Gate Valve

Forged Gate Valve

产品型号 Type	公称通径DN	PN1.6/2.5/4.0/6.4MPa								WT (kg)

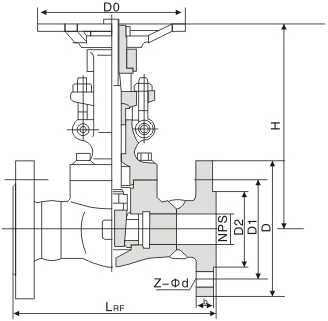

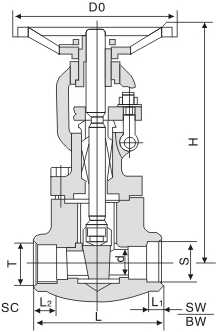

产品型号 Type	公称通径DN	L	d	S	L1	T	L2	H	Do	WT (kg)
Z41H-16C Z41H-25 Z41H-40 Z11H-16C Z11H-25 Z11H-40 Z61H-16C Z61H-25 Z61H-40	15	90	13	22.5	10	1/2“	15	151	118	6.9
	20	100	18	28.5	11	3/4“	17	182	130	9.8
	25	120	23	24.5	12	1	19	197	150	13.5
	32	130	28	43	14	11/4"	21	212	180	19.5
	40	150	36	49	15	11/2"	21	231	180	28.5
	50	155	45	61	16	2"	25	253	180	30.3
Z41H-64 Z11H-64 Z61H-64	15	90	13	22.5	10	1/2“	15	151	118	7.7
	20	100	18	28.5	11	3/4“	17	182	130	11.3
	25	120	23	34.5	12	1"	19	197	150	16.8
	32	130	28	43	14	11/4"	21	212	180	21.2
	40	150	36	49	15	11/2"	21	231	180	32.6
	50	155	45	61	16	2"	25	253	180	35

产品型号 Type	公称通径DN	PN10.0/16.0MPa Class 800Lb								WT (kg)
产品型号 Type	公称通径DN	L	d	S	L1	T	L2	H	Do	WT (kg)
Z41Y-100 Z11Y-100 Z61Y-100	15	90	13	22.5	10	1/2“	15	151	118	7.8
	20	100	18	28.5	11	3/4“	17	182	130	12.5
	25	120	23	24.5	12	1	19	197	150	17.5
	32	130	28	43	14	11/4"	21	212	180	23.5
	40	150	36	49	15	11/2"	21	231	180	38.5
	50	155	45	61	16	2"	25	253	180	42.2
Z41Y-160 Z11Y-160 Z61Y-160 Z41Y-800Lb Z11Y-800Lb Z61Y-800Lb	15	90	13	22.5	10	1/2“	15	151	118	8
	20	100	18	28.5	11	3/4“	17	182	130	13.6
	25	120	23	34.5	12	1	19	197	150	19.4
	32	130	28	43	14	11/4"	21	212	180	25.1
	40	150	36	49	15	11/2"	21	231	180	41.6
	50	155	45	61	16	2"	25	253	180	49
