Water-sealed Globe Valve

Water-sealed Globe Valve

DS/J61H-40 DS/J61Y-40

PRODUCT DETAILS

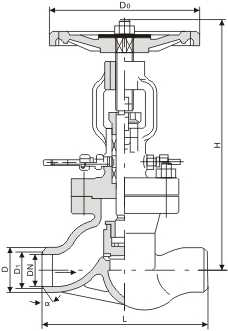

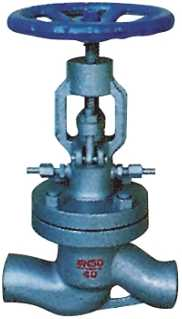

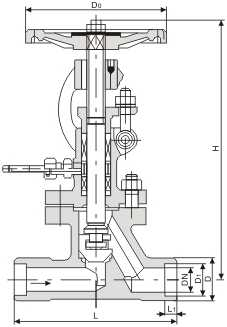

水封截止阀 Water-sealed Globe Valve

产品型号 Type	公称通径 DN	PN2.5MPa								WT (kg)
产品型号 Type	公称通径 DN	L	D	D	d	α	L1	H	D0	WT (kg)
DS/J61H-25 DS/J61Y-25	15	130	36	19	15	-	11	257	120	5
	20	150	44	26	20	-	11	267	140	7.3
	25	160	44	33	24	-	12	269	140	8.2
	32	180	48	34	32	37° 30'		255	180	12
	40	200	55	40	38	37° 30'		395	200	15
	50	230	64	50	46	37° 30*		354	250	25
	65	290	82	65	64	37° 30'		400	250	38.5
	80	310	94	78	74	37° 30'		425	300	49
	100	350	117	97	95	37° 30'		468	350	64
	125	400	144	122	120	37° 30'		475	400	83
	150	480	170	148	145	37° 30'		611	400	94
	200	600	220	197	193	37° 30'		721	400	152

产品型号 Type	公称通径 DN	PN4.0MPa								WT (kg)
产品型号 Type	公称通径 DN	L	D	D	d	α	L1	H	D0	WT (kg)
DS/J61H-40 DS/J61Y-40	15	130	38	19	15	-	11	257	120	5.7
	20	150	47	26	20	-	11	267	140	7.6
	25	160	47	33	24	-	12	270	140	8.8
	32	180	53	34	32	37° 30'		257	180	13.2
	40	200	57	40	38	37° 30'		297	200	16.5
	50	230	68	50	46	37° 30'		354	250	26
	65	290	85	65	62	37° 30'		405	250	41.3
	80	310	98	78	74	37° 30'		427	300	51.5
	100	350	122	97	95	37° 30'		470	350	69
	125	400	148	122	120	37° 30'		475	400	89
	150	480	176	148	145	37° 30'		614	400	98

产品型号 Type	公称通径 DN	PN6.4MPa								WT (kg)
产品型号 Type	公称通径 DN	L	D	D	d	α	L1	H	D0	WT (kg)
DS/J61H-64 DS/J61Y-64	15	210	38	19	15	-	11	257	140	6.4
	20	230	47	26	19	-	11	269	160	8.4
	25	230	47	33	24	-	12	273	180	9.6
	32	260	53	34	32	37° 30'		259	200	23
	40	260	57	40	38	37° 30'		297	250	34
	50	300	70	50	46	37° 30'		256	280	46
	65	340	86	65	62	37° 30'		405	320	67
	80	380	100	78	74	37° 30'		429	360	85
	100	430	124	97	95	37° 30'		477	400	97
