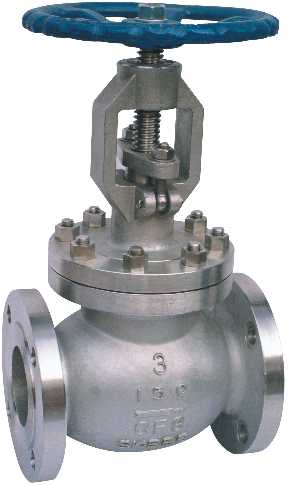

ANSI GLobe Valve

J41H-150Lb J41W-150LbP J41H-150LbP J41W-150LbR J41H-150LbL J41W-150LbRL J41H-300Lb J41W-300LbP J41H-300LbP J41W-300LbR J41H-300LbL J41W-300LbRL

PRODUCT DETAILS

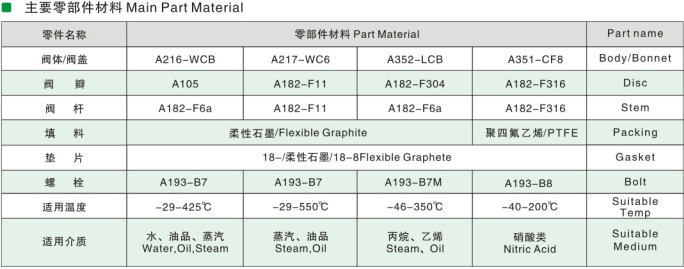

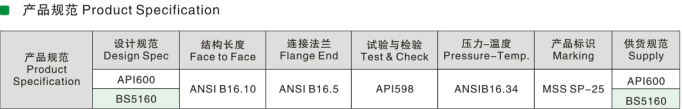

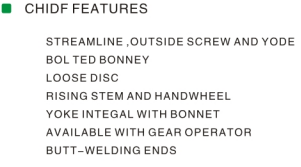

磅级截止阀 ANSI GLobe Valve

ANSI GLobe Valve

产品型号 Type	NPS	DN	Class 150Lb								WT (Kg)

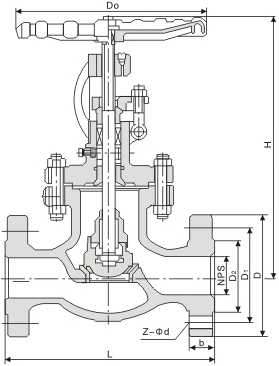

产品型号 Type	in	mm	L	D	D1	D2	b	Z-Φd	H1	D0	WT (Kg)
J41H-150Lb J41W-150LbP J41H-150LbP J41W-150LbR J41H-150LbL J41W-150LbRL	1/2"	15	108	89	60.5	35	12	4-Φ15	169	125	5
	3/4"	20	117	98	70	43	12	4-Φ15	180	125	7
	1"	25	127	108	79.5	51	12	4-Φ15	190	125	9
	11/2"	40	165	127	98.5	73	14.3	4-Φ16	347	180	15
	2"	50	203	152	120.5	92	15.9	4-Φ19	356	180	18
	21/2"	65	216	178	139.5	105	17.5	4-Φ19	381	240	30
	3"	80	241	190	152.4	127	19.1	4-Φ19	411	280	41
	4"	100	292	229	190.5	157	24	8-Φ19	454	280	64
	5"	125	356	254	216	186	24	8-Φ22	541	320	86
	6"	150	406	279	241.5	216	25.4	8-Φ22	565	360	113
	8"	200	495	343	298.5	270	29	8-Φ22	800	450	115
	10"	250	622	406	362	324	31	8-Φ25	1231	500	295
	12"	300	698	483	432	381	32	8-Φ25	1450	600	450

产品型号Type	NPS	DN	Class 300Lb								WT (Kg)
产品型号Type	in	mm	L	D	D1	D2	b	Z-Φd	H1	D0	WT (Kg)
J41H-300Lb J41W-300LbP J41H-300LbP J41W-300LbR J41H-300LbL J41W-300LbRL	1/2"	15	152	95	66.5	35	15	4-Φ15	190	125	5.2
	3/4“	20	178	117	82.5	43	16	4-Φ19	212	125	7.3
	1"	25	203	124	89	51	18	4-Φ19	231	160	9.5
	11/2"	40	229	156	114.5	73	20.7	4-Φ22	391	200	17.6
	2"	50	267	165	127	92	22	8-Φ19	406	200	25
	21/2"	65	292	190	149	105	25	8-Φ22	457	240	30
	3"	80	318	210	168.5	127	29	8-Φ22	470	280	35
	4"	100	356	254	200	157	32	8-Φ22	590	320	56
	5“	125	400	279	235	186	35	8-Φ22	614	400	96
	6"	150	444	318	270	216	37	12-Φ22	711	500	120
	8"	200	559	381	330	270	42	12-Φ25	750	500	212
	10"	250	622	441	387.5	324	48	16-Φ29	1012	500	460
	12"	300	711	521	451	381	51	16-Φ32	1231	600	615

产品型号 Type	NPS	DN	Class 600Lb								WT (Kg)
产品型号 Type	in	mm	L	D	Di	D2	b	Z-Od	H	Do	WT (Kg)
J41H-600Lb J41W-600LbP J41H-600LbP J41W-600LbR J41H-600LbL J41W-600LbRL	1/2"	15	165	95	66.5	35	22	4-Φ15	285	160	6
	3/4“	20	190	117.5	82.5	43	23	4-Φ19	285	160	10
	1"	25	216	124	89	51	25	4-Φ19	313	160	12
	11/2"	40	241	156	114.5	73	30	4-Φ22	365	240	19
	2"	50	292	165	127	92	33	8-Φ19	444	240	35
	21/2"	65	330	190	149	105	36	8-Φ22	483	240	50
	3"	80	356	210	168	127	39	8-Φ22	533	280	60
	4"	100	432	273	216	157	45	8-Φ25	622	360	110
	5"	125	508	330	267	186	52	8-Φ29	750	360	200
	6U	150	559	356	292	216	55	12-Φ29	800	500	230
	8“	200	600	419	349	270	63	12-Φ32	927	550	410
	10"	250	787	508	432	324	71	16-Φ35	1257	600	770
	12-	300	838	559	489	381	74	20-Φ35	1468	680	1140
