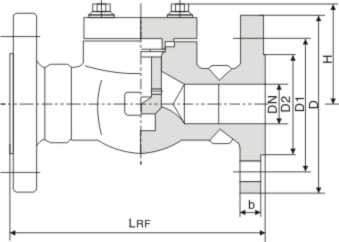

Forged Check Valve
H41H-16C H41H-25 H41H-40 H11H-16C H11H-25 H11H-40 H61H-16C H61H-25 H61H-40 H41H-64 H41H-100 H41H-160 H11H-64 H11H-100 H11H-160 H61H-64 H61H-100 H61H-160 H41Y-800Lb H11Y-800Lb H61Y-800Lb
锻钢止回阀 Forged Check Valve
| 产品型号 Type | 公称通径DN | PN1.6/2.5/4.0/6.4MPa Class 800Lb | WT (kg) | |||||||
| L | d | S | L1 | T | L2 | H | FLD. | SC/SW | ||
| H41H-16C H41H-25 H41H-40 H11H-16C H11H-25 H11H-40 H61H-16C H61H-25 H61H-40 H41H-64 H41H-100 H41H-160 H11H-64 H11H-100 H11H-160 H61H-64 H61H-100 H61H-160 H41Y-800Lb H11Y-800Lb H61Y-800Lb |
15 | 90 | 13 | 22.5 | 10 | 1/2 | 15 | 61 | 3 | 1.5 |
| 20 | 100 | 18 | 28.5 | 11 | 3/4 | 17 | 78 | 4 | 3 | |
| 25 | 120 | 23 | 34.5 | 12 | 1 | 19 | 84 | 5.8 | 3.9 | |
| 32 | 140 | 28 | 43 | 14 | 11/4 | 21 | 103 | 8.5 | 5.6 | |
| 40 | 170 | 36 | 49 | 15 | 11/2 | 21 | 118 | 10.1 | 8.9 | |
| 50 | 200 | 45 | 61 | 16 | 2 | 25 | 132 | 15.6 | 12.5 | |
