Bearing

UCFC211 UCFC212 UCFC213 UCFC214 UCFC215 UCFC216 UCFC217 UCFC218

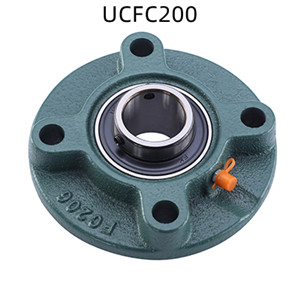

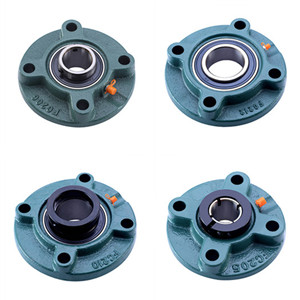

Boss round housed bearing

PRODUCT DETAILS

UCFC211 UCFC212 UCFC213 UCFC214 UCFC215 UCFC216 UCFC217 UCFC218

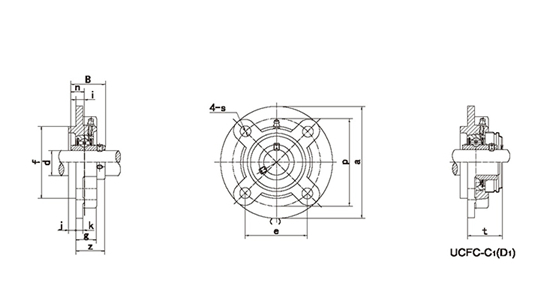

Model	Size ( mm )														Bolt mm	Bearing	Bearing housing	W.T(kg)
Model	d	a	p	(e)	i	s	j	k	g	f	z	t	B	n	Bolt mm	Bearing	Bearing housing	W.T(kg)
UCFC211	55	185	150	106.1	13	19	12	15	31	125	46.4	51	55.6	22.2	M16	UC211	FC211	3.86
UCFC212	60	195	160	113.1	17	19	12	15	36	135	56.7	61.5	65.1	25.4	M16	UC212	FC212	4.69
UCFC213	65	205	170	120.2	16	19	14	15	36	145	55.7	60.5	65.1	25.4	M16	UC213	FC213	5.3
UCFC214	70	215	177	125.1	17	19	14	18	40	150	61.4	67.5	74.6	30.2	M16	UC214	FC214	6.46
UCFC215	75	220	184	130.1	18	19	16	18	40	160	62.5	67.5	77.8	33.3	M16	UC215	FC215	6.86
UCFC216	80	240	200	141.4	18	23	16	18	42	170	67.3	72.5	82.6	33.3	M20	UC216	FC216	8.47
UCFC217	85	250	208	147.1	18	23	18	20	45	180	69.6	74.6	85.7	34.1	M20	UC217	FC217	10.18
UCFC218	90	265	220	155.5	22	23	18	20	50	190	78.3	83.5	96	39.7	M20	UC218	FC218	12.24

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
