UK211;H2311 UK212;H2312 UK213;H2313 UK215;H2315 UK216;H2316 UK217;H2317 UK218;H2318

Spherical Bearings

PRODUCT DETAILS

UK211;H2311 UK212;H2312 UK213;H2313 UK215;H2315 UK216;H2316 UK217;H2317 UK218;H2318

轴承型号	尺寸 (mm/in.)									重量 (kg)

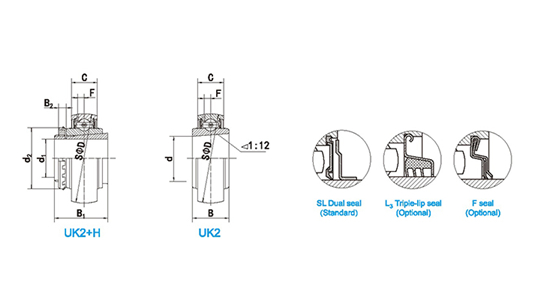

轴承型号	d1	d	D	B	C	B1	B2	ds	F	重量 (kg)
UK211;H2311	50	55	100	35	25	59	12	75	7	1.15
UK212;H2312	55	60	110	38	27	62	13	80	7.6	1.47
UK213;H2313	60	65	120	40	28	65	14	85	8.5	1.81
UK215;H2315	65	75	130	44	30	73	15	98	9.2	2.55
UK216;H2316	70	80	140	45	32	78	17	105	9.5	3.08
UK217;H2317	75	85	150	46	34	82	18	110	10.2	3.7
UK218;H2318	80	90	160	47	36	86	18	120	11.2	4.34

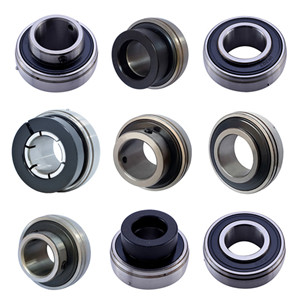

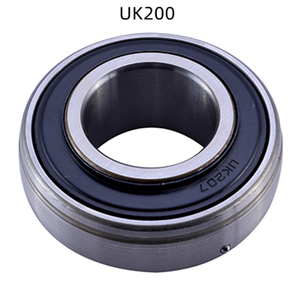

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
