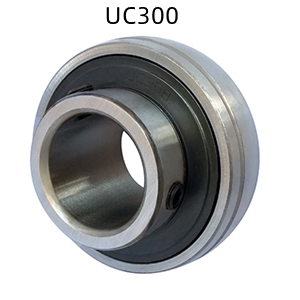

UC305 UC306 UC307 UC308 UC309 UC310 UC311 UC312 UC313 UC314 UC315 UC316 UC317 UC318 UC319 UC320 UC322 UC324 UC326 UC328

Spherical Bearings

PRODUCT DETAILS

UC305 UC306 UC307 UC308 UC309 UC310 UC311 UC312 UC313 UC314 UC315 UC316 UC317 UC318 UC319 UC320 UC322 UC324 UC326 UC328

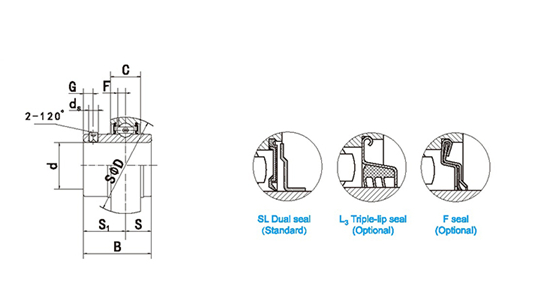

Bearing	Size(mm/in.)									W.T(kg)
Bearing	d	D	B	C	S	S1	G	ds	F	W.T(kg)
UC305	25	62	38	20	15	23	6	M6x1	5.4	0.33
UC306	30	72	43	23	17	26	6	M6x1	5.7	0.536
UC307	35	80	48	25	19	29	8	M8x1	6.2	0.694
UC308	40	90	52	27	19	33	10	M10x1	7	0.954
UC309	45	100	57	30	22	35	10	M10x1	7.8	1.285
UC310	50	110	61	32	22	39	12	M12x1.5	8.5	1.637
UC311	55	120	66	34	25	41	12	M12x1.5	9.2	2.07
UC312	60	130	71	36	26	45	12	M12x1.5	9.8	2.6
UC313	65	140	75	38	30	45	12	M12x1.5	10.5	3.174
UC314	70	150	78	40	33	45	12	M12x1.5	11.1	3.79
UC315	75	160	82	42	32	50	14	M14x1.5	11.8	4.52
UC316	80	170	86	44	34	52	14	M14x1.5	12.5	5.32
UC317	85	180	96	46	40	56	16	M16x1.5	13.1	6.48
UC318	90	190	96	48	40	56	16	M16x1.5	13.8	7.33
UC319	95	200	103	50	41	62	16	M16x1.5	14.7	8.81
UC320	100	215	108	54	42	66	18	M18x1.5	15.7	10.71
UC322	110	240	117	60	46	71	18	M18x1.5	17.7	14.55
UC324	120	260	126	64	51	75	18	M18x1.5	19	18.47
UC326	130	280	135	68	54	81	20	M20x1.5	20	22.98
UC328	140	300	145	72	59	86	20	M20x1.5	22	27.98

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
