UK305;H2305 UK306;H2306 UK307;H2307 UK308;H2308 UK309;H2309 UK310;H2310 UK311;H2311 UK312;H2312 UK313;H2313 UK315;H2315

Spherical Bearings

PRODUCT DETAILS

UK305;H2305 UK306;H2306 UK307;H2307 UK308;H2308 UK309;H2309 UK310;H2310 UK311;H2311 UK312;H2312 UK313;H2313 UK315;H2315

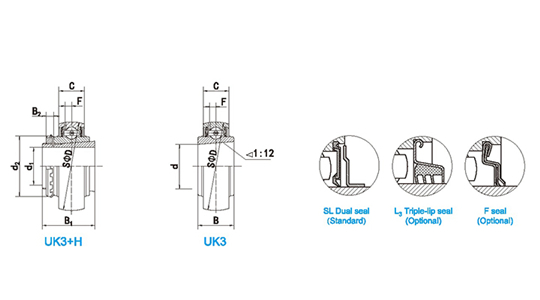

Bearing	Size(mm/in.)									W.T(kg)
Bearing	d1	d	D	B	C	B1	B2	d2	F	W.T(kg)
UK305;H2305	20	25	62	26	20	35	8	38	5.4	0.36
UK306;H2306	25	30	72	29	23	38	8	45	5.7	0.56
UK307;H2307	30	35	80	33	25	43	9	52	6.2	0.72
UK308;H2308	35	40	90	34	27	46	10	58	7	0.99
UK309;H2309	40	45	100	37	30	50	11	65	7.8	1.29
UK310;H2310	45	50	110	41	32	55	12	70	8.5	1.71
UK311;H2311	50	55	120	44	34	59	12	75	9.2	2.08
UK312;H2312	55	60	130	47	36	62	13	80	9.8	2.88
UK313;H2313	60	65	140	49	38	65	14	85	10.5	3.1
UK315;H2315	65	75	160	55	42	73	15	98	11.8	4.76

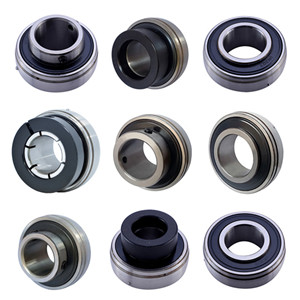

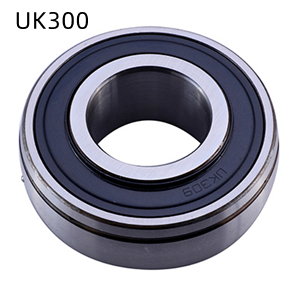

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
