UK316;H2316 UK317;H2317 UK318;H2318 UK319;H2319 UK320;H2320 UK322;H2322 UK324;H2324 UK326;H2326 UK328;H2328

Spherical Bearings

PRODUCT DETAILS

UK316;H2316 UK317;H2317 UK318;H2318 UK319;H2319 UK320;H2320 UK322;H2322 UK324;H2324 UK326;H2326 UK328;H2328

Bearing	Size(mm/in.)									W.T(kg)

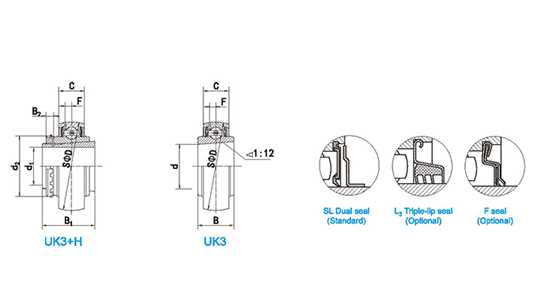

Bearing	d1	d	D	B	C	B1	B2	d2	F	W.T(kg)
UK316;H2316	70	80	170	55	44	78	17	105	12.5	5.51
UK317;H2317	75	85	180	60	46	82	18	110	13.1	6.75
UK318;H2318	80	90	190	63	48	86	18	120	13.8	7.62
UK319;H2319	85	95	200	66	50	90	19	125	14.7	9.23
UK320;H2320	90	100	215	68	54	97	20	130	15.7	10.85
UK322;H2322	100	110	240	78	60	105	21	145	17.7	14.94
UK324;H2324	110	120	260	87	64	112	22	155	19	19.29
UK326;H2326	115	130	280	87	68	121	23	165	20	23.4
UK328;H2328	125	140	300	97	72	131	24	180	22	29.45

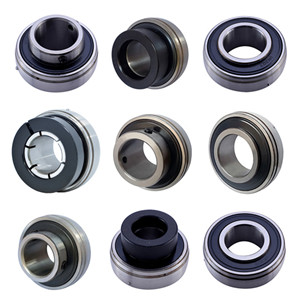

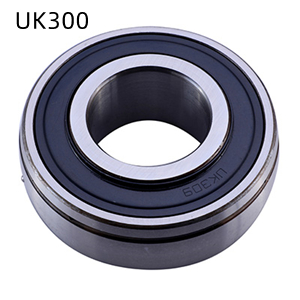

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
