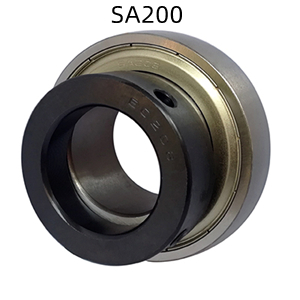

SA201 SA202 SA203 SA204 SA205 SA206 SA207 SA208 SA209 SA210 SA211 SA212

Spherical Bearings

PRODUCT DETAILS

SA201 SA202 SA203 SA204 SA205 SA206 SA207 SA208 SA209 SA210 SA211 SA212

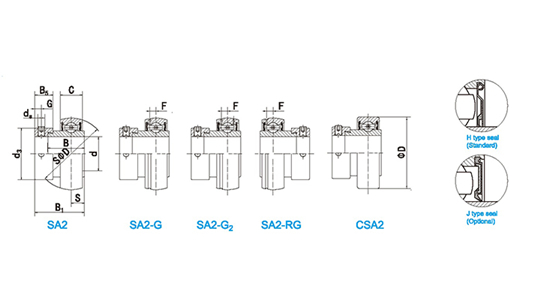

Bearing	Size(mm/in.)											W.T(kg)
Bearing	d	D	B1	B	C	S	ds	G	F	B5	d3	W.T(kg)
SA201	12	40	28.6	19.1	12	6.5	M6X1	4.8	3.4	13.5	28.6	0.12
SA202	15	40	28.6	19.1	12	6.5	M6X1	4.8	3.4	13.5	28.6	0.1
SA203	17	40	28.6	19.1	12	6.5	M6X1	4.8	3.4	13.5	28.6	0.09
SA204	20	47	31	21.5	14	7.5	M6X1	4.8	4.2	13.5	33.3	0.16
SA205	25	52	31	21.5	15	7.5	M6X1	4.8	4.3	13.5	38.1	0.2
SA206	30	62	35.7	23.8	16	9	M8X1	6	5	15.9	44.5	0.3
SA207	35	72	38.9	25.4	17	9.5	M8X1	6.8	5.6	17.5	55.6	0.42
SA208	40	80	43.7	30.2	18	11	M8X1	6.8	5.9	18.3	60.3	0.6
SA209	45	85	43.7	30.2	19	11	M8X1	6.8	6.1	18.3	63.5	0.64
SA210	50	90	43.7	30.2	20	11	M8X1	6.8	6.5	18.3	69.9	0.72
SA211	55	100	48.4	32.5	21	12	M10X1	8	7	20.7	76.2	1
SA212	60	110	53.1	37.2	22	13.5	M10X1	8	7.4	22.3	84.2	1.34

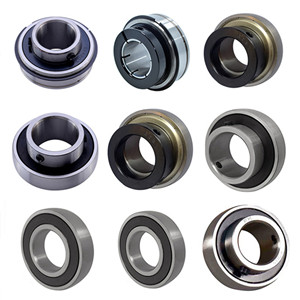

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
