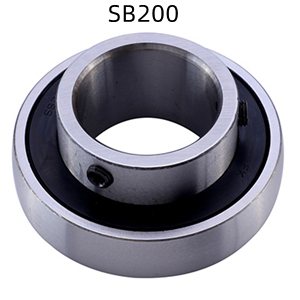

SB201 SB202 SB203 SB204 SB205 SB206 SB207 SB208 SB209 SB210 SB211 SB212

Spherical Bearings

PRODUCT DETAILS

SB201 SB202 SB203 SB204 SB205 SB206 SB207 SB208 SB209 SB210 SB211 SB212

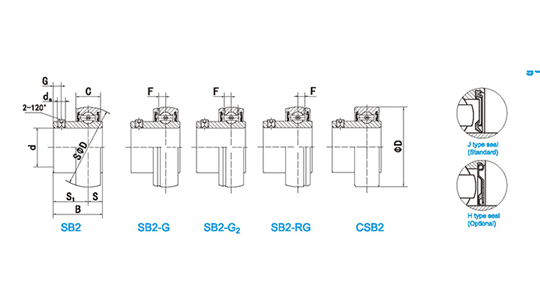

Bearing	Size(mm/in.)									W.T(kg)
Bearing	d	D	B	C	S	S1	ds	F	G	W.T(kg)
SB201	12	40	22	12	6	16	M5X0.8	3.4	4.5	0.1
SB202	15	40	22	12	6	16	M5X0.8	3.4	4.5	0.1
SB203	17	40	22	12	6	16	M5X0.8	3.4	4.5	0.09
SB204	20	47	25	14	7	18	M6X1	4.2	4.5	0.13
SB205	25	52	27	15	7.5	19.5	M6X1	4.3	5.5	0.16
SB206	30	62	30	16	8	22	M6X1	5	6	0.25
SB207	35	72	32	17	8.5	23.5	M8X1	5.6	6.5	0.36
SB208	40	80	34	18	9	25	M8X1	5.9	7	0.45
SB209	45	85	41.2	19	10.2	31	M8X1	6.1	8.2	0.54
SB210	50	90	43.5	20	10.9	32.6	M10X1	6.5	9.2	0.62
SB211	55	100	45.3	21	11.8	33.5	M10X1	7	9.8	0.81
SB212	60	110	53.7	22	14.9	38.8	M10X1	7.4	9.8	1.14

The outer spherical bearing is actually a variant of the deep groove ball bearing. At the same time, this type of bearing also has a certain self-alignment in design and is easy to install. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), diamond seat (FL), annular seat (C), slider seat, etc. ( T).
